PI Server

Overview

This document describes how to copy PI Tag attributes from a PI Server into the corresponding metric fields in the Axibase Time Series Database.

The process involves enabling a JDBC job in Axibase Collector.

Attributes

PI Tag Attribute	ATSD Metric Attribute	Type
tag	name (lowercased, normalized)	field
tag	label	field
descriptor	description	field
zero	min	field
zero + span	max	field
engunits	units	field
step	interpolation (0=>linear, 1=>previous)	field
pointtypex	data type (converted to ATSD type)	field
creationdate	creation_date	tag
digitalset	digital_set	tag
pointsource	point_source	tag
pointtype	point_type	tag
pointtypex	point_data_type	tag
typicalvalue	typical_value	tag

In addition to copying PI Point attributes, the job can be configured to populate the metrics' timezone field based on the selected timezone identifier.

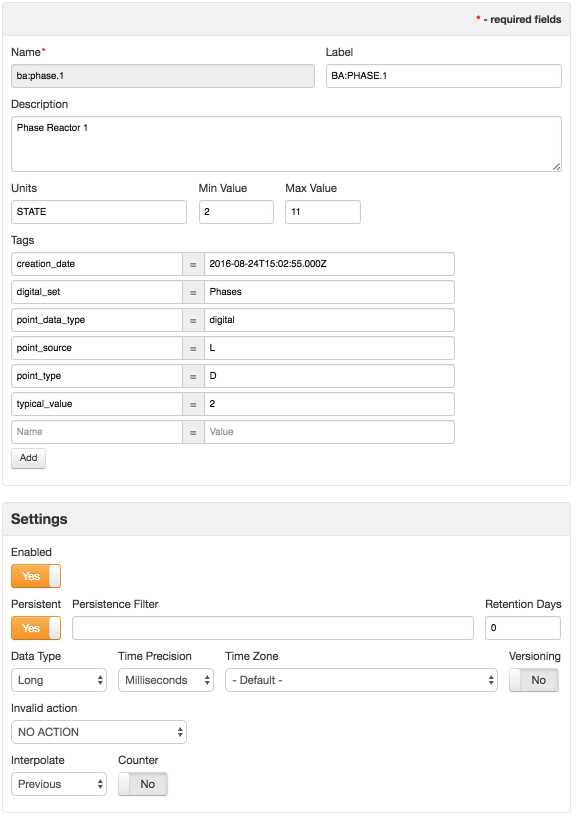

ATSD Metric Info

Requirements

PI SQL Data Access Server 1.5+
PI JDBC Driver 1.5+

Installation Steps

Provide Axibase Collector with PI JDBC Driver

Install the PI JDBC Driver:

cd $PATH_TO_PI_JDBC_DRIVER_ARCHIVE
tar -xzvf pijdbc_2016-x86-x64_.tar.gz
cd pijdbc_2016-x86-x64_/pipc/jdbc
sudo ./install.sh
sudo chown -R $USER /opt/pipc

Copy the PI JDBC Driver to the Axibase Collector's ext folder:

cp /opt/pipc/jdbc/PIJDBCDriver.jar $AXIBASE_COLLECTOR_HOME/ext/

Restart Axibase Collector:

$AXIBASE_COLLECTOR_HOME/bin/stop-collector.sh
$AXIBASE_COLLECTOR_HOME/bin/start-collector.sh

Import PI Server job into Axibase Collector

Open Jobs:Import and upload the file pi_jdbc_metric.xml.

Configure PI Server Database Connection

Open the Data Sources:Databases page and select the PI_JDBC database.

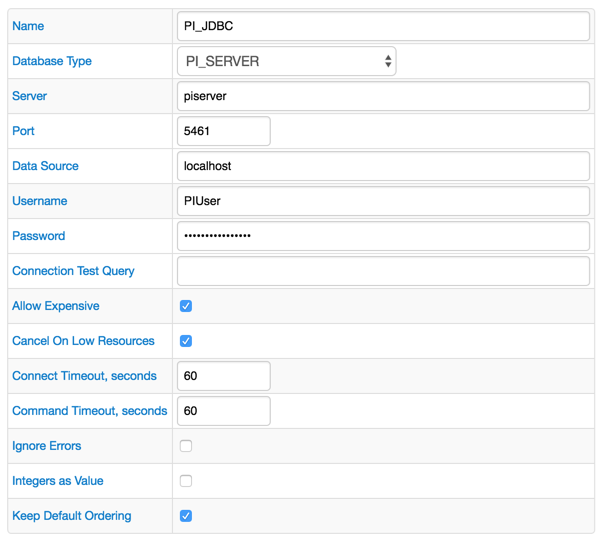

Provide connection parameters to the target PI Server instance as displayed below:

Execute the following test query to check the connection:

SELECT 1

Query result must be Query OK.

Verify Job Configuration

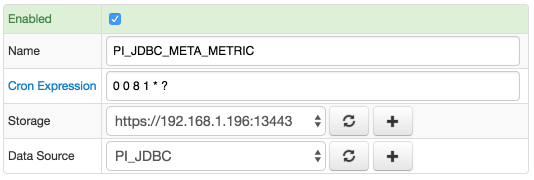

Open the PI_JDBC_META_METRIC job.
Set the Data Source to PI_JDBC.

Choose one of the target ATSD instances if your Collector instance is connected to multiple ATSD servers.
Save the Job.

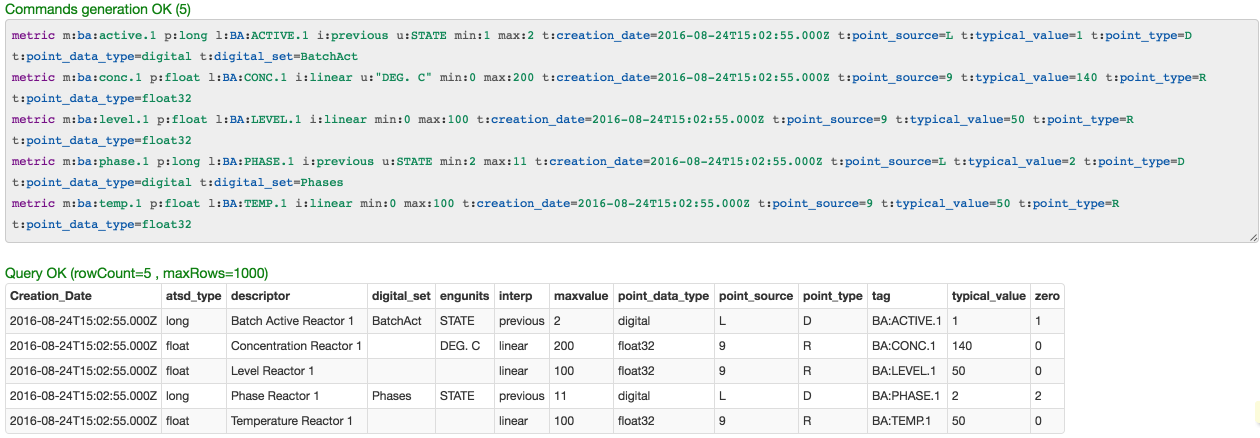

Open each configuration, click the [Test] button, and review the output.

Schedule the Job

Open the JDBC Job page and click the [Run] button for the PI Server jobs.
Make sure that the job status is COMPLETED, and Items Read and Sent commands are greater than 0.

If there are no errors, set the job status to 'Enabled' and save the job.

Verify Metrics in ATSD

Log in to ATSD.

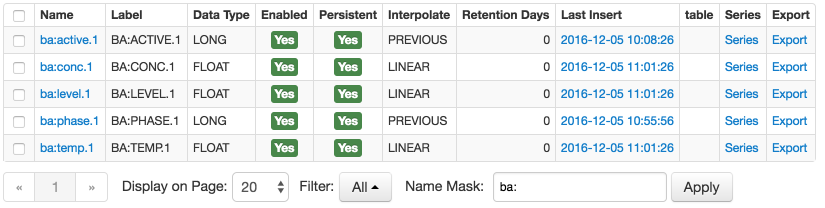

Click on the Metrics tab and filter metrics by name, e.g. find by prefix ba:. You should see a list of exported PI tags:
