TCP Job
TCP (Transmission Control Protocol) is an IP protocol which provides reliable data delivery between systems.
The TCP job checks the remote system's availability by establishing a TCP connection, as well as measuring the amount of time spent on opening the connection.
If connection is successful, the tcp-check-status metric is set to 0, otherwise it is to one of the codes in the connection status table.
Collected Metrics
| Name | Description |
|---|---|
| tcp-connect-status | Connection status. |
| tcp-connect-time | Number of milliseconds spent on opening the connection. |
In case of failure retests, the values for the above metrics are based on the last connection attempt.
Connection Status
| Status | Description |
|---|---|
| 0 | Connection established successfully. |
| 1 | Connection Error |
| 2 | No Route To Host |
| 3 | Unknown Host |
| 4 | Socket Timeout |
| 5 | Other Error |
Job Configuration
| Field | Description |
|---|---|
| Configuration Name | Name of the configuration. |
| Default TCP Port | Default TCP port to which collector will be connecting, unless a specific port is included in the remote system address. |
| Item List | Collection of remote system hostnames or IP addresses with an optional :{port} suffix, to be used instead of the default port. |
| Metric Prefix | Metric prefix prepended to the collected metric names. |
| Default Tags | Predefined series tags added to all series commands. |
| Request Timeout, seconds | The number of seconds the server will wait for the connection to open. |
| Failure Retests | Number of attempts to re-establish the connection in case of failure. |
| Failure Retest Delay, seconds | Delay between retry attempts in case of failure. |

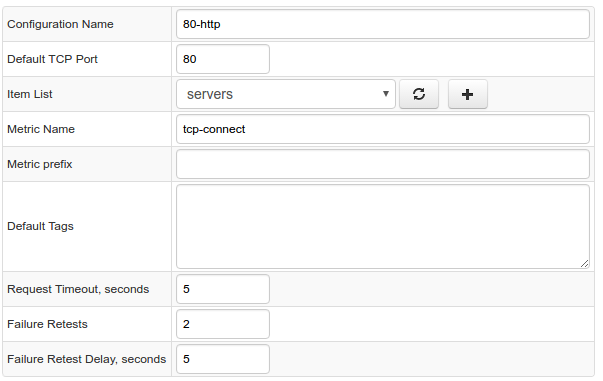

Configuration Example
