OVPM Job
OVPM protocol is used to retrieve data from the HP OpenView Performance Manager.

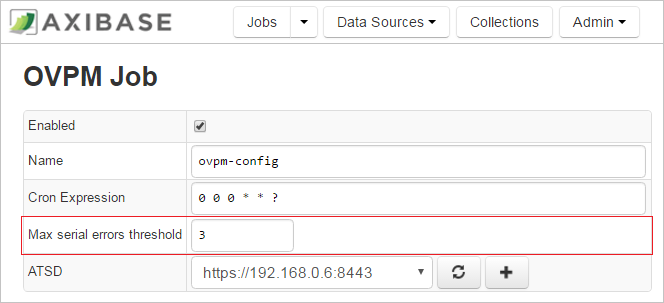

Job Settings
Apart from the general job settings that are specified in the Axibase Collector Jobs, OVMP job has an additional job-specific parameter.
Max. serial errors threshold - defines the maximum amount of consecutive errors after which no more queries will be sent.

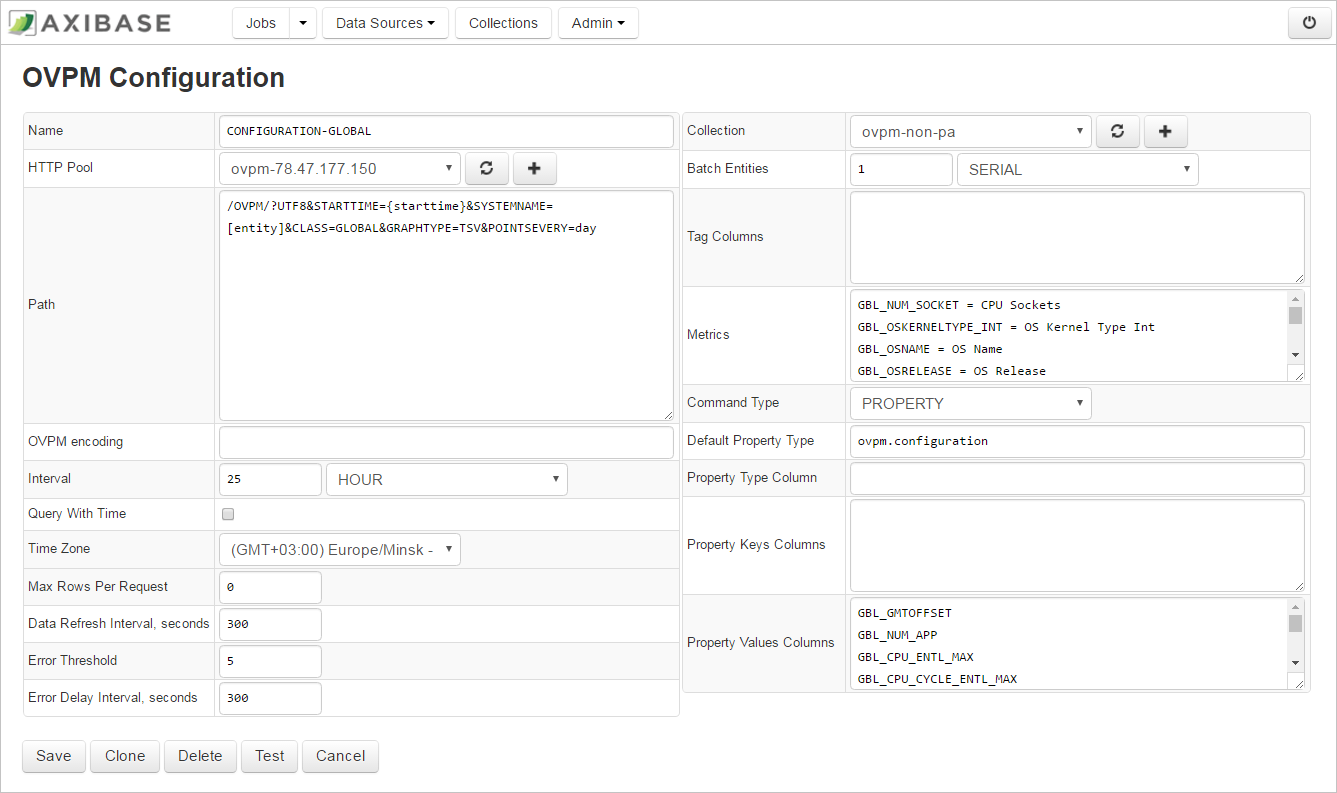

OVPM Configuration
To configure an OVPM job, click Create OVPM configuration. Use the table below to set configuration parameters.
| Field | Description |
|---|---|
| Name | Configuration name. |
| HTTP Pool | Data source. |
| Path | Relative path to OVPM CSV endpoint. |
| OVPM encoding | Character set that is used to parse the resulting data. |
| Interval | Data interval that will be downloaded. |
| Query With Time | When executing the job, the server will be set to the maximum time of the previous data. |
| Time Zone | Time zone in which the data is collected. |
| Max Rows Per Request | Maximum amount of rows that will be retrieved. |
| Data Refresh Interval, seconds | OVPM sampling interval. |
| Error Threshold | Amount of error requests after which no more queries will be sent. |
| Error Delay Interval, seconds | Interval during which the current entity will be excluded from queries, in the case that there are previous errors. |
| Entity Group | List of hosts, entity groups created in Axibase Collector. |
| Batch Entities | Defines the number of entities grouped in one query. |
| Tag Columns | Columns containing tags. |
| Metrics | List of metrics that will be collected. |
| Put Type | Type of data: metric, property, or both. |
| Default Property Type | Default property type. |
| Property Type Column | Column containing the property types. |
| Property Keys Columns | Columns containing the property keys. |
| Property Values Columns | Columns containing the property values. |
