PI Server

Overview

This document describes how to export archive data from a PI Server into the Axibase Time Series Database as series commands using the Collector PI job.

Requirements

PI SQL Data Access Server 1.5+
PI JDBC Driver 1.5+

PI JDBC Driver should be installed and added as a data source in Collector. Follow the steps in the tutorial to do it.

PI Job Configuration

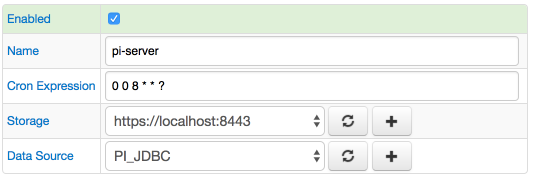

Select PI in the Jobs dropdown. Click on the Add Job button. Fill in all the necessary fields.

PI Task Configuration

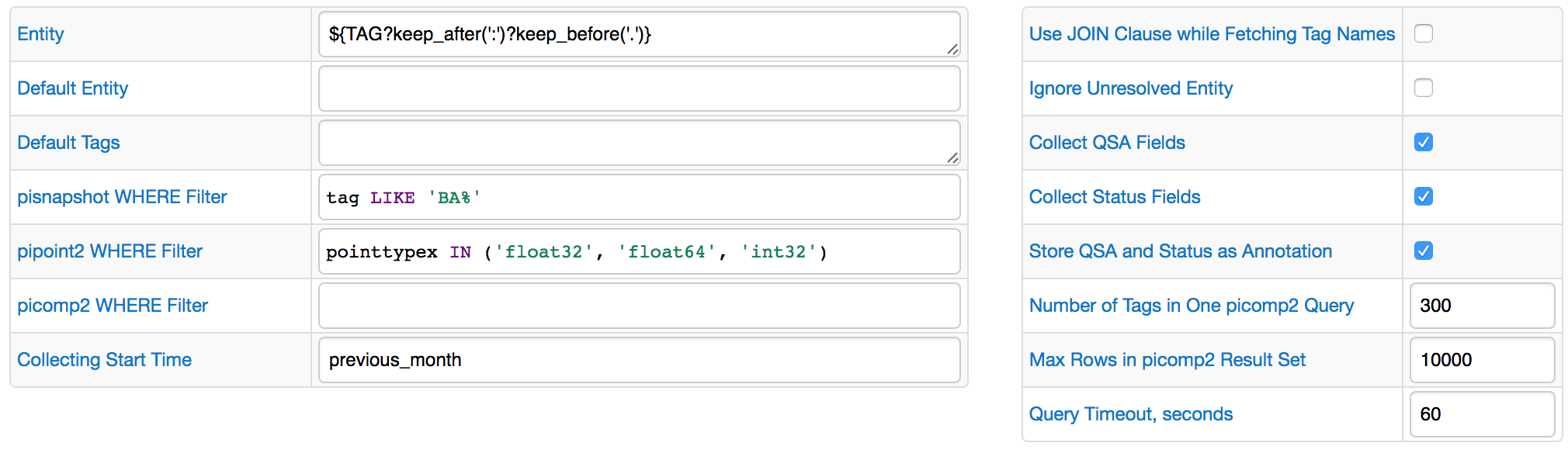

Click on the Create Configuration button. Provide tag-to-entity mapping. You can use freemarker expressions in the Entity field for string manipulations. If you want to query only a subset of available tags or get picomp2 values satisfying the condition, fill in the WHERE Filter fields.

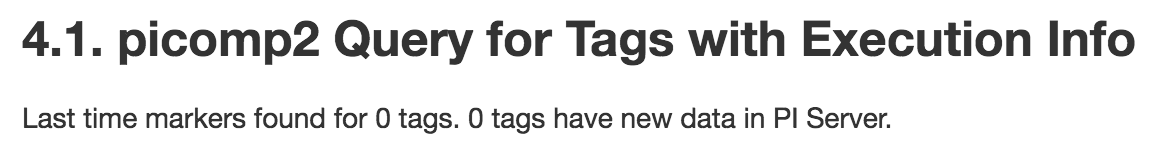

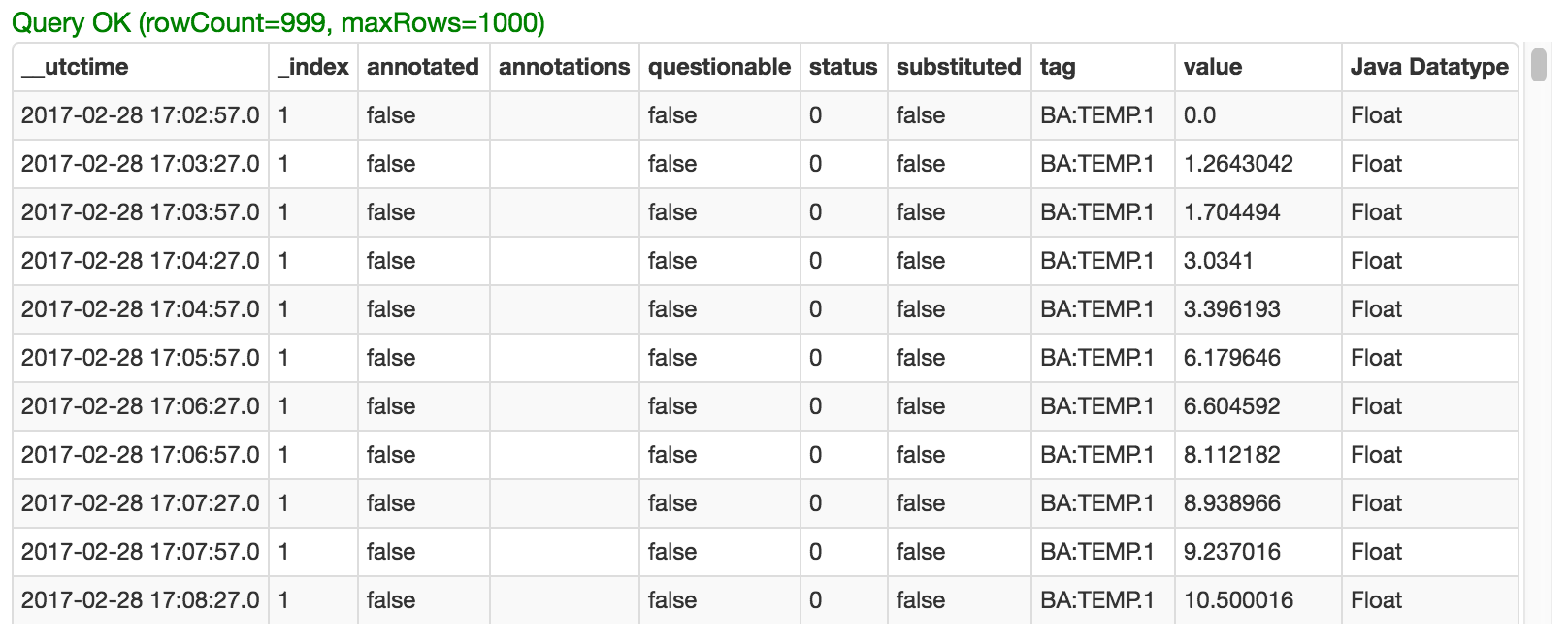

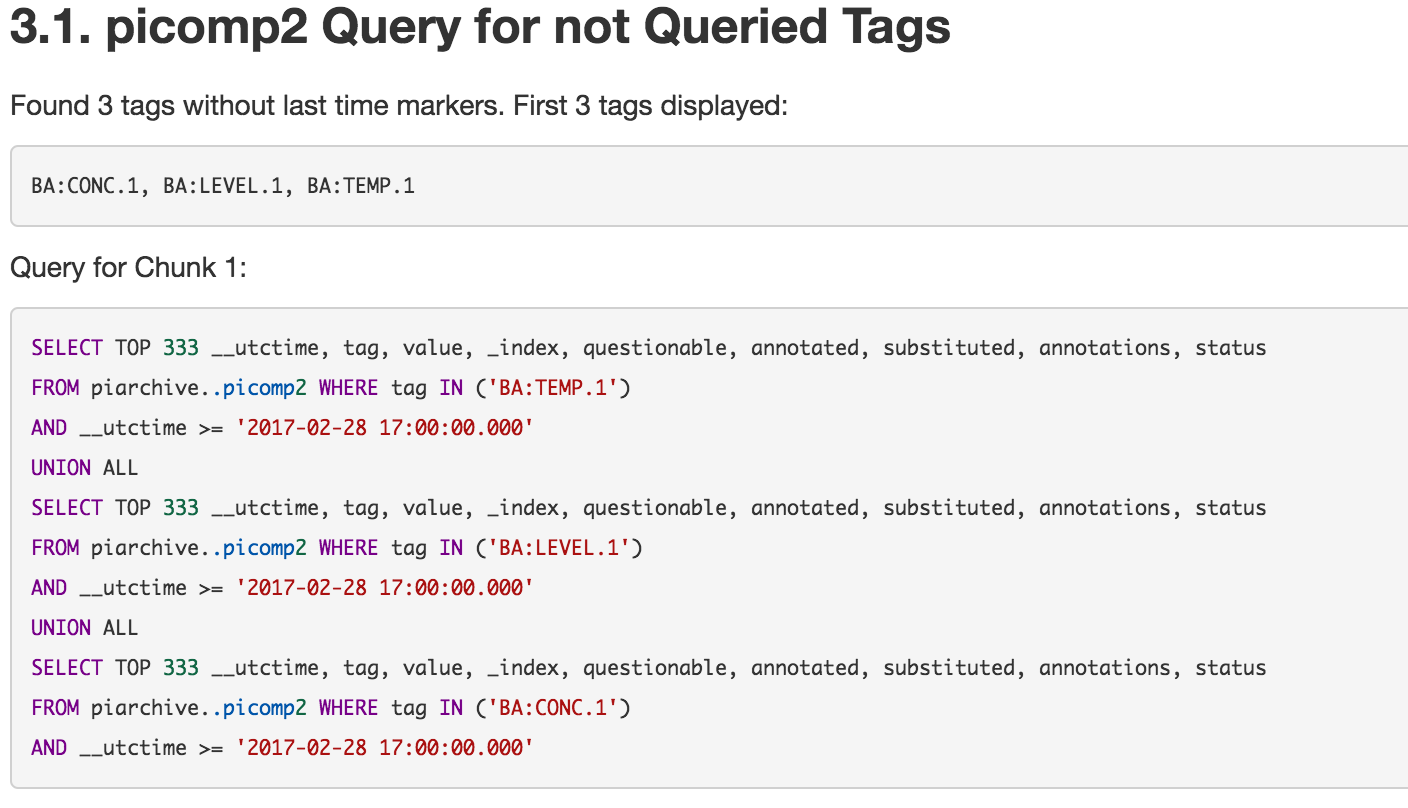

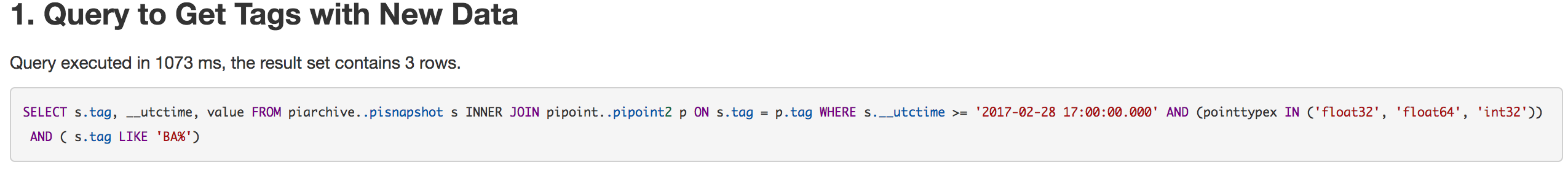

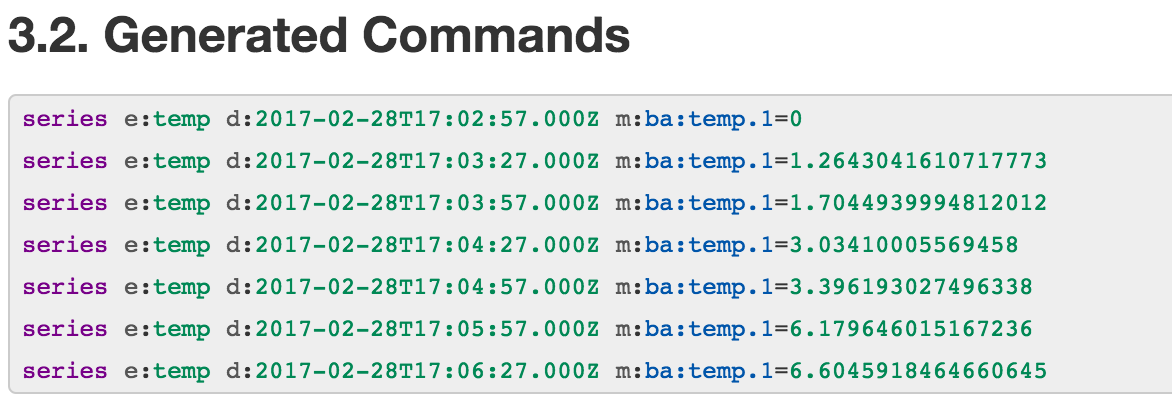

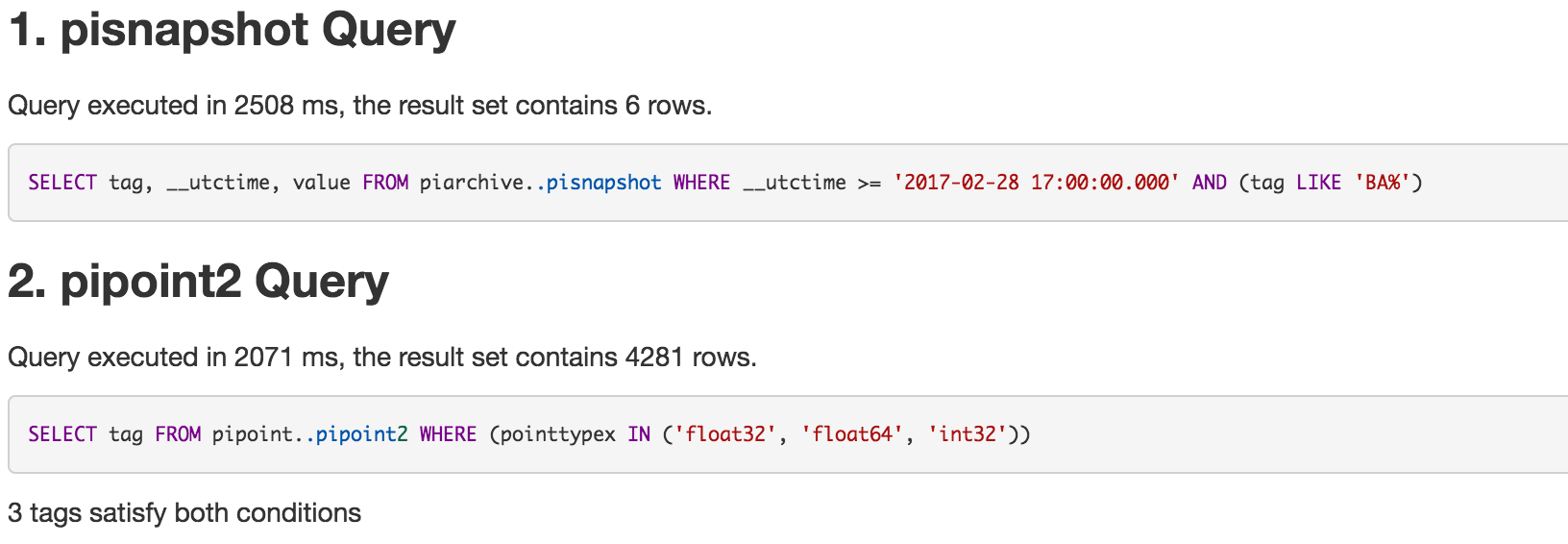

When you finish, click on the [Test] button to see the queries executed by the job, returned result set, and generated ATSD network commands. During the test mode the number of queried picomp2 rows is limited by 1000. If the option Use JOIN Clause while Fetching Tag Names is enabled, only one query is executed:

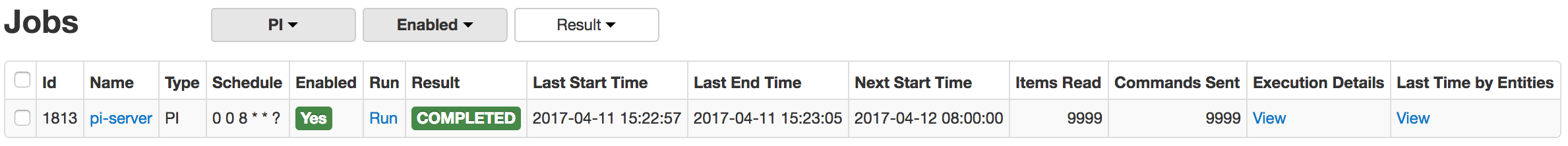

When configuration is done, save the job and run it. You may see the execution details by clicking on the View link in the Execution Details column.

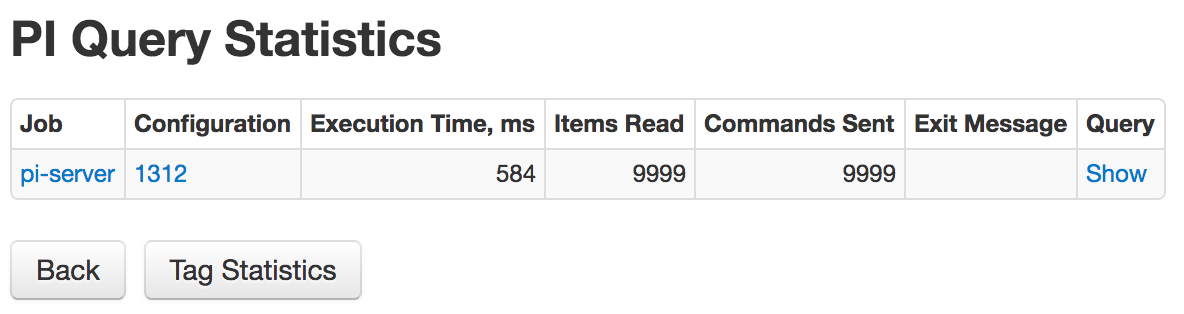

You can see executed queries info by following the Details link.

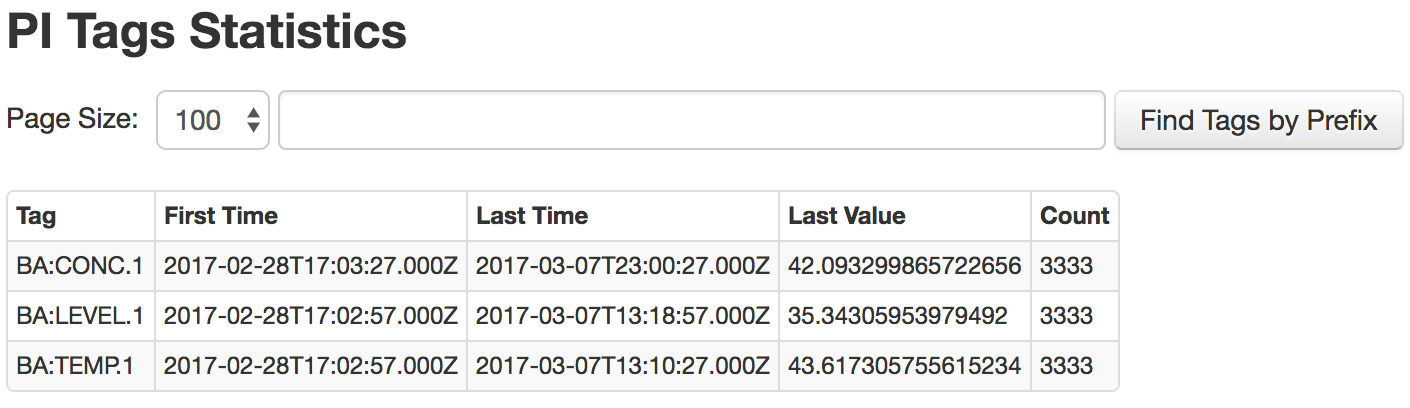

The Tag Statistics button will lead to the page with information on every processed PI tag, such as first and last collected measure time, last value, number of collected measures.
