# JMX Job

# Overview

JMX (Java Management Extensions) is an industry-standard technology for monitoring and managing Java applications. Java applications instrumented with JMX expose a set of resources called MBeans (Management Beans) with attributes and methods that can be queried and invoked programmatically.

The JMX job in Axibase Collector provides a way to query MBean attribute values from remote Java applications and transmit them to the Axibase Time Series Database for alerting and long-term retention. MBean attribute values can be stored as properties or series in case of numeric attributes.

The JMX job can have one or multiple JMX configurations each describing connection parameters and MBean queries. It is common for configurations in a given job to connect to the same Java application.

# JMX Configuration

# Connection Parameters

Connection parameters should correspond to the com.sun.management.jmxremote settings specified by the target Java application.

ACTIVEMQ_SUNJMX_START="-Dcom.sun.management.jmxremote \
   -Dcom.sun.management.jmxremote.port=1090 \
   -Dcom.sun.management.jmxremote.rmi.port=1090 \
   -Dcom.sun.management.jmxremote.ssl=false \
   -Djava.rmi.server.hostname=NURSWGVML011 \
   -Dcom.sun.management.jmxremote.password.file=${ACTIVEMQ_BASE}/conf/jmx.password \
   -Dcom.sun.management.jmxremote.access.file=${ACTIVEMQ_BASE}/conf/jmx.access"

To verify connectivity with the remote host, click the [Test] or [Viewer] buttons.

Add hostname to the /etc/hosts file directory on the collector machine in case of UnknownHostException.

Failed to retrieve RMIServer stub: javax.naming.ConfigurationException [Root exception is java.rmi.UnknownHostException: Unknown host: NURSWGVML011; nested exception is: java.net.UnknownHostException: NURSWGVML011]

# Query Parameters

Excluded Property and Series Attributes support '*' wildcards, for example: DynamicDestinationProducers_*, QueueProducers_*.

# Entity Name

If not specified, the entity name is set to the value of the Host field. You can override it, for example, if the Host field contains a DNS hostname, whereas you need to collect data under a short hostname of the server where the Java application is running.

In addition, the entity name can be retrieved dynamically by specifying the MBean Object Name followed by > and the attribute name (mbean>attribute). For example:

java.lang:type=Runtime>SystemProperties.java.rmi.server.hostname.value

If the entity name query fails to provide a value or if the bean or attribute is not found, the entity name will be set to the Host field. If the composite expression retrieves a value successfully, it will be stored in the Axibase Collector database and will be re-used in case of subsequent connection errors.

# Queries

Configuration includes a list of MBean queries consisting of two parts: object name pattern and attribute list.

The list of queries can be entered manually or by opening Viewer, expanding MBean hierarchy, and choosing attributes of interest.

Both parts of the query support wildcards:

• Asterisk * replaces any number (including zero) of characters.
• Question mark ? replaces any one character.

#Object Name pattern

The pattern pattern matches MBean instances of specified type and name.

org.apache.activemq:brokerName=localhost,type=Broker   -->     TotalProducerCount, TotalMessageCount

Negation is not supported by JMX natively and is therefore implemented on the client. To exclude MBean use != operator. For example, to exclude topics starting with underscore:

kafka.cluster:name=*,partition=*,topic!=_*,type=Partition

# Attribute Name list

The list specifies attributes whose values will be retrieved and sent to the database.

The list can include specific names as well as name patterns.

You can specify the list of collected attributes by replacing specific attribute names with wildcards. For example, to collect all numeric attributes from MBean java.lang:*,type=GarbageCollector, specify * in the corresponding attribute selector field.

Special processing for PROPERTY command:

• Attribute Name list is ignored for property commands since property commands collect all attributes of the matched beans.

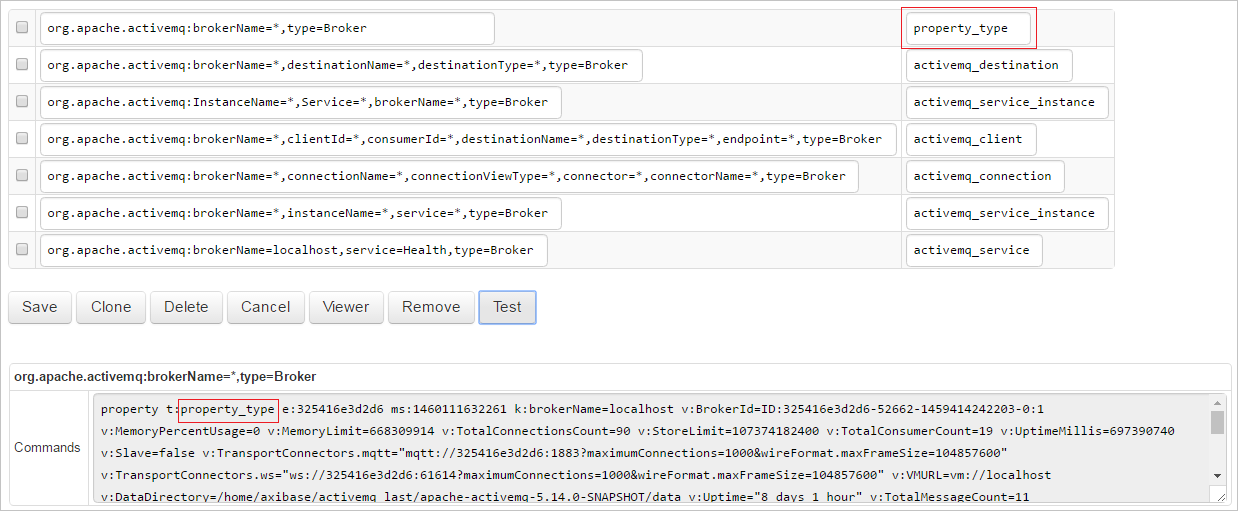

• The default value for property type field is set to MBean type, for instance, to Broker in the example above. To override the default type, enter a custom value or use ${attribute_name} placeholders in the property_type column.

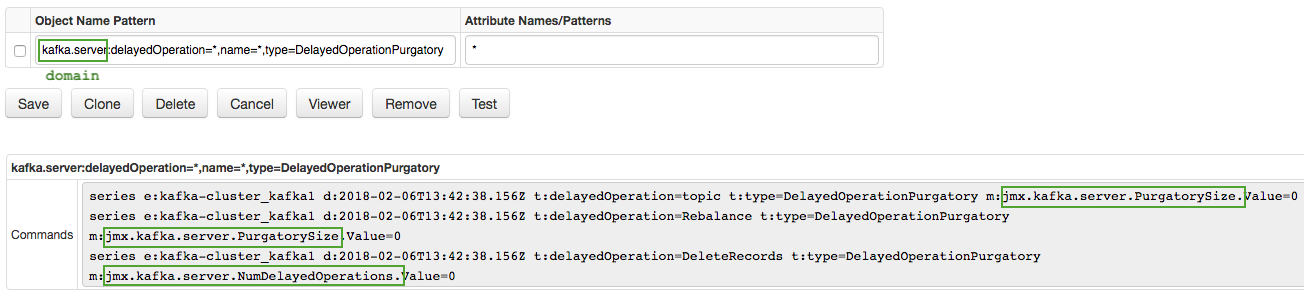

# Metric Prefix Example

Metric Prefix:

jmx.${domain}.${name}

The attribute name is excluded from series tags, because the Metric Prefix field contains it using placeholder:

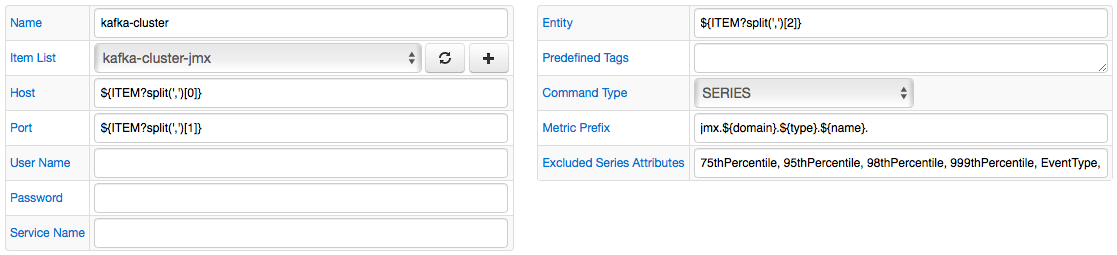

# Item List Example

The kafka-cluster-jmx list contains items (host,port,entity):

172.17.0.1,1099,kafka1
172.17.0.2,1099,kafka2
172.17.0.3,1099,kafka3

The each row is splitted by freemarker function to extract values:

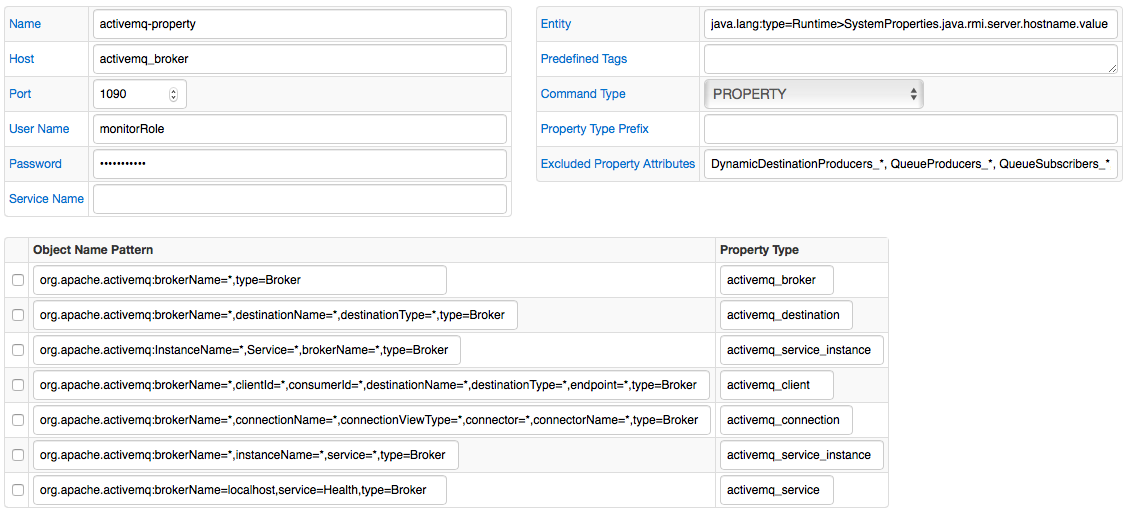

# JMX Configuration Example

# Viewer

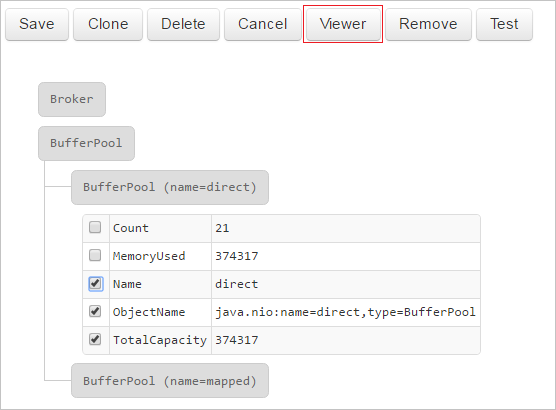

Click 'Viewer' to open a tree-based MBean navigator displaying available Management Beans and their attributes.

Select a checkbox next to an attribute name to add to the list of collected attributes. Modify the expression by replacing the specific Object Name fields with wildcards, if necessary.

# Ignored MBean Attributes

The following MBean attributes are ignored from Viewer and the commands:

• Attribute value cannot be obtained due to a processing error:
  - UnsupportedOperationException
  - UnmarshalException
  - ReflectionException
  - RuntimeOperationsException
  - InstanceNotFoundException
• Attribute value is NaN (Not a Number) for numeric attributes in case of a series command.
  NaN can occur, for example, on division by zero.

To view attributes ignored due to processing errors, enable debugging for the MBeansInfoExtractor class:

<logger name="com.axibase.collector.model.jmx.MBeansInfoExtractor" level="DEBUG">
    <appender-ref ref="logRoller"/>
</logger>

Restart Axibase Collector process, execute the JMX job, or open the Viewer.

Review the log:

tail -f ./axibase-collector/logs/axibase-collector.log
