# Collections

# Item Lists

Item List is a collection of strings which can be iterated to execute repetitive requests (queries) within the same job configuration.

The list can be defined by specifying items as text (one item per line) or by retrieving them from an external source such as file or script output.

Items starting with the hash # symbol are treated as comments and are ignored.

Supported list types:

• TEXT
• FILE
• SCRIPT
• URL
• QUERY
• ATSD_PROPERTY

Job types with support for Item List automation:

• FILE
• HTTP
• ICMP
• JSON
• OVPM
• SNMP
• SOCRATA
• TCP

# Configuration

To create a new list, open the Collections:Item Lists page, and click Add:

# Usage

Use the ${ITEM} placeholder to access the value of the current item in the list while iterating.

The items retain the original order as specified in the editor or returned by an external source.

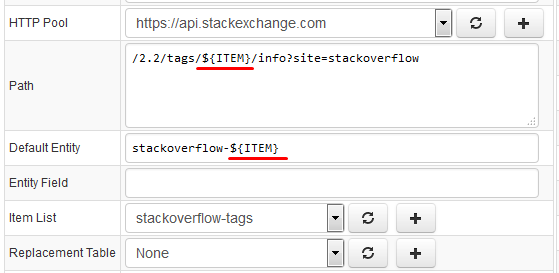

For example, include the ${ITEM} placeholder into the Path field in JSON job to query a different URL for each element in the list.

# Functions

Item values can be further modified with built-in string functions.

${ITEM?function(arguments)}

Example: ${ITEM?keep_before("_")}

Multiple functions can be chained (executed from left to right):

${ITEM?functionA(arguments)?functionB(arguments)}

Example: ${ITEM?keep_before("_")?replace(".csv", "")}

# Types

Item Lists may receive items from different sources. Currently the following types are implemented:

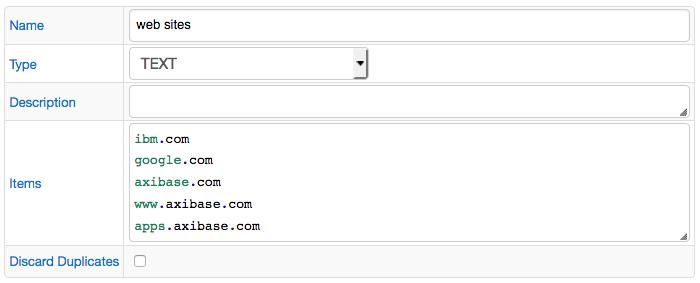

# TEXT

An Item List which stores strings entered in the Items field on the form.

List items should be separated by a line break.

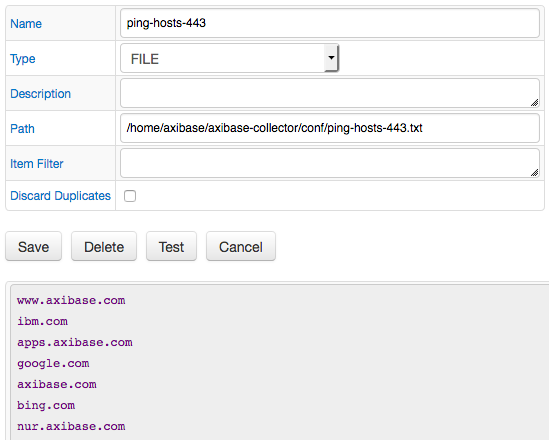

# FILE

Reads lines from a file on the local filesystem.

If the file is not found, an empty list is returned. List items in the file should be separated with a line break.

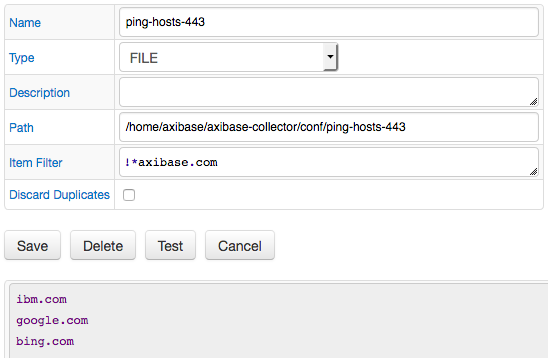

Exclude items which end with axibase.com:

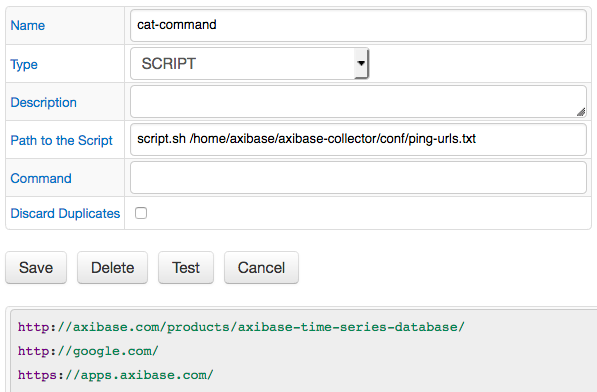

# SCRIPT

Executes a script specified in the Command field and reads lines from a standard output as list items.

The Command field should start with the script file name (absolute path not supported) and optional script arguments.

The script should print items separated by line breaks to 'stdout'.

• Example

The directory /tmp/report/csv contains CSV files. The Item List should contain a collection of file name prefixes before the underscore symbol.

ent-1_file-1.csv
ent-1_file-2.csv
ent-1_file-3.csv
ent-2_file-1.csv
ent-2_file-2.csv
ent-3_file-3.csv

nano prefix.sh

#!/usr/bin/env bash
dir="$1/*"
for file in $dir; do
    if [[ -f $file &&  $file == *"_"* ]]; then
        filename=${file##*/}
        b=${filename%_*}
        echo -e "$b"
    fi
done

chmod a+x prefix.sh
prefix.sh /tmp/report/csv

ent-1
ent-1
ent-1
ent-2
ent-2
ent-3

# URL

Reads lines from a remote file/page.

If the file is not found, an empty list is returned. List items should be separated with a line break when the MULTILINE_TEXT format is selected.

Examples:

• MULTILINE_TEXT
• JSON

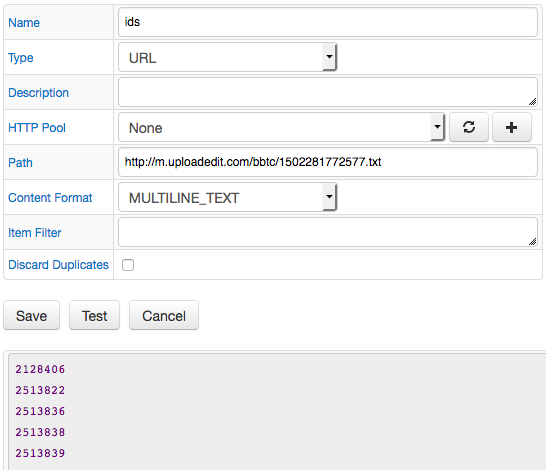

# Example with MULTILINE_TEXT content

• Example

URL = http://m.uploadedit.com/bbtc/1502281772577.txt

Remote file content:

#ID
2128406
2513822
2513836
2513838
2513839

result:

2128406
2513822
2513836
2513838
2513839

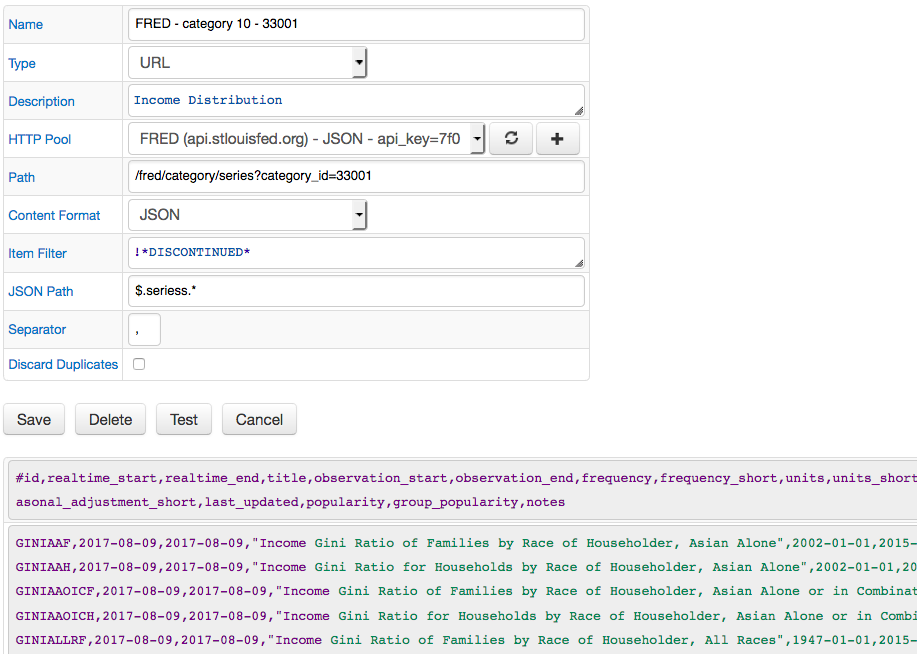

# Example with JSON content

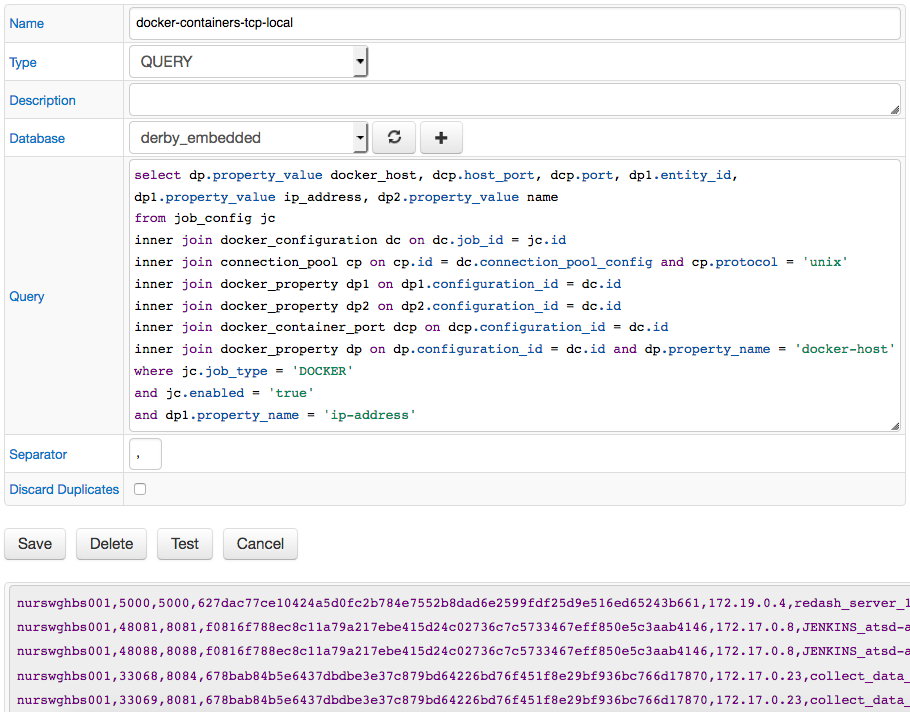

# QUERY

Selects data from a database with a SELECT query.

Each item is created by concatenating values from all columns in a given row separated by the specified token.

If the result set is empty, an empty list is returned.

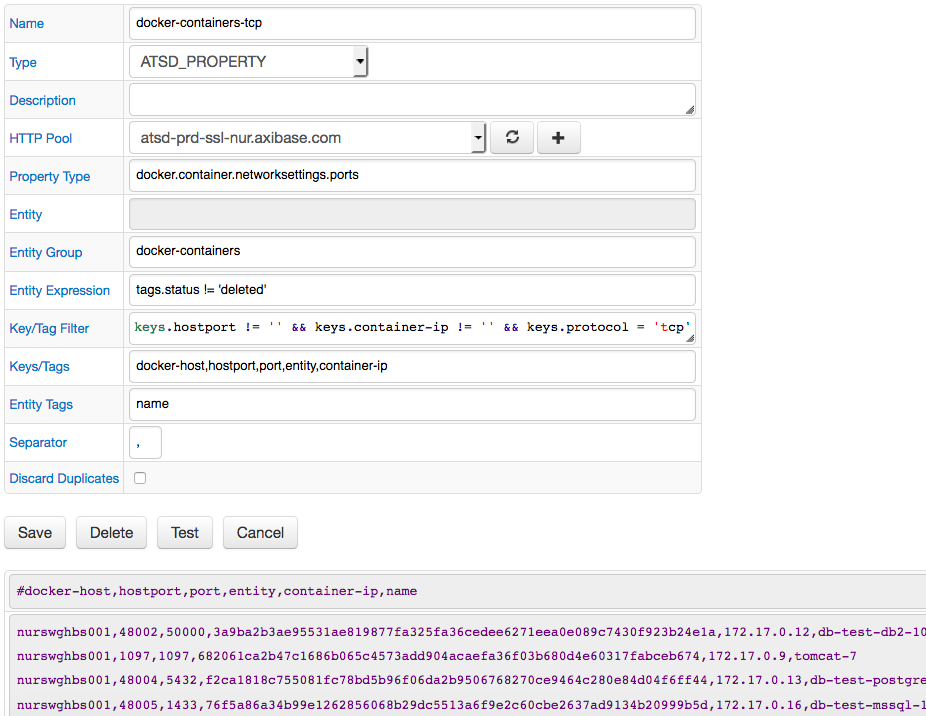

# ATSD_PROPERTY

Requests a list of property records from ATSD with the property query method.

Each item is created by concatenating field values (Keys/Tags + Entity Tags) separated by the specified token.

If no property records are found, an empty list is returned.
