# Oracle Enterprise Manager

# Overview

Oracle Enterprise Manager (Oracle EM) is a distributed application for centralized monitoring, diagnosing, and resolving issues related to Oracle products.

Oracle EM collects and stores statistics from remote databases, applications, and systems in an Oracle database (SYSMAN.gc$metric_values table) which Axibase Collector queries every 15 minutes to offload incremental data into the Axibase Time Series Database for long-term retention and operations analytics.

# Requirements

• Oracle Enterprise Manager 11+

# Installation Steps

# Import Oracle EM JDBC Job

• Open Jobs:Import and upload the oracle-em-jobs.xml file.

# Configure Oracle EM Database Connection

• Open the Data Sources:Databases page and select the OracleEM database.

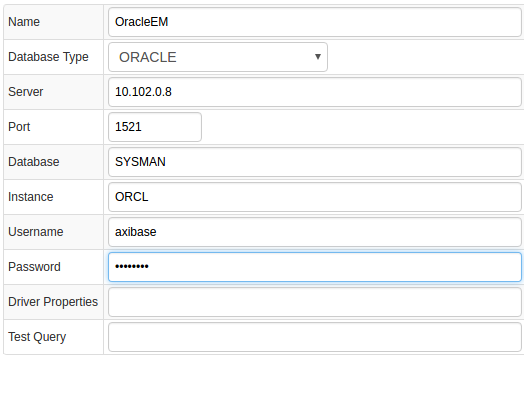

• Provide connection parameters to the target Oracle EM database as displayed below:

• Read-only/SELECT privileges to SYSMAN.GC$TARGET and SYSMAN.gc$metric_values tables are sufficient.
• Execute the following test query to check the connection:

SELECT NULL FROM dual

• Click on the [Meta Data] button and check that the SYSMAN schema is present in the list of schemas.

# Verify Job Configuration

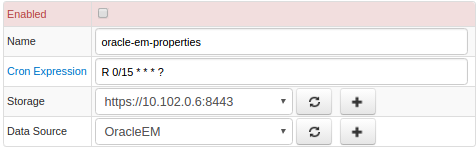

• Open Oracle EM JDBC job.
• Set the Data Source to OracleEM.

• Choose one of target ATSD instances if your Collector instance is connected to multiple ATSD servers.
• Save the Job.

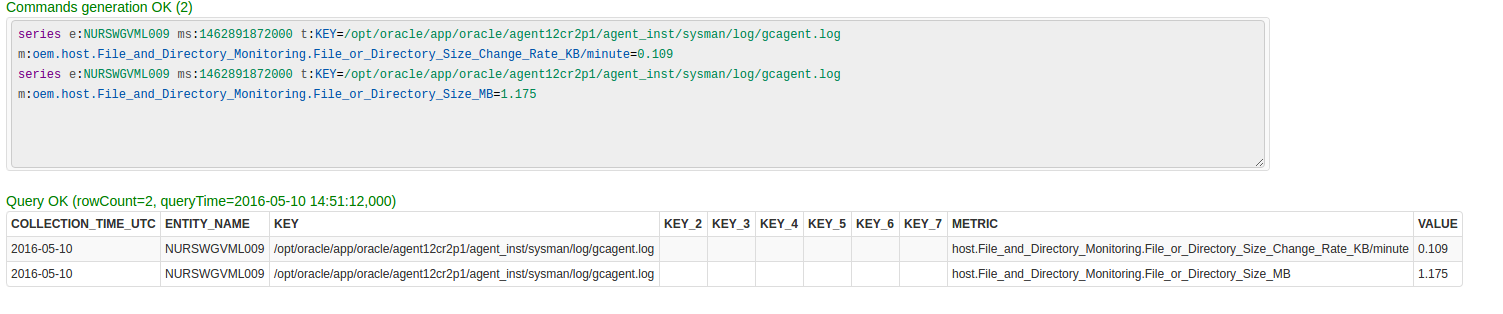

• Open each configuration, click on the [Test] button, and review the output. See Data Queries below.

# Schedule the Job

• Open the JDBC Job page and click the [Run] button for the Oracle EM JDBC job.
• Make sure that the job status is COMPLETED and Items Read and Sent commands are greater than 0.

• If there are no errors, set job status to 'Enabled' and save the job.

# Verify Metrics in ATSD

• Login into ATSD.

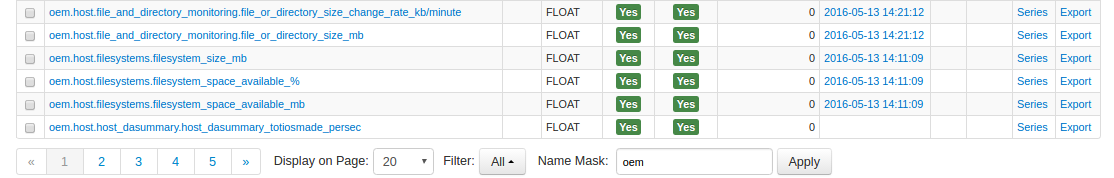

• Click on the Metrics tab and filter metrics by name oem.*.

# Viewing Data in ATSD

# Metrics

• List of collected Oracle EM metrics

# Properties

• List of collected Oracle EM properties

# Entity Groups

• oracle-databases
• oracle-hosts

# Portals

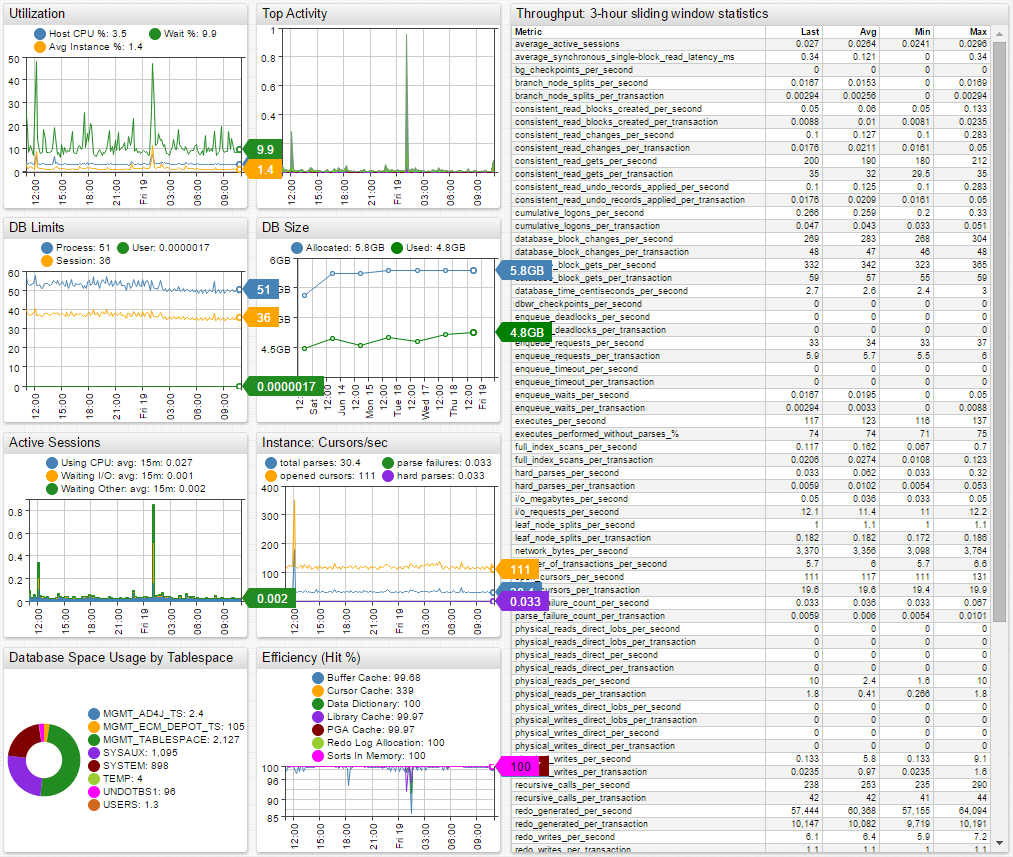

• Oracle Databases Live Portal

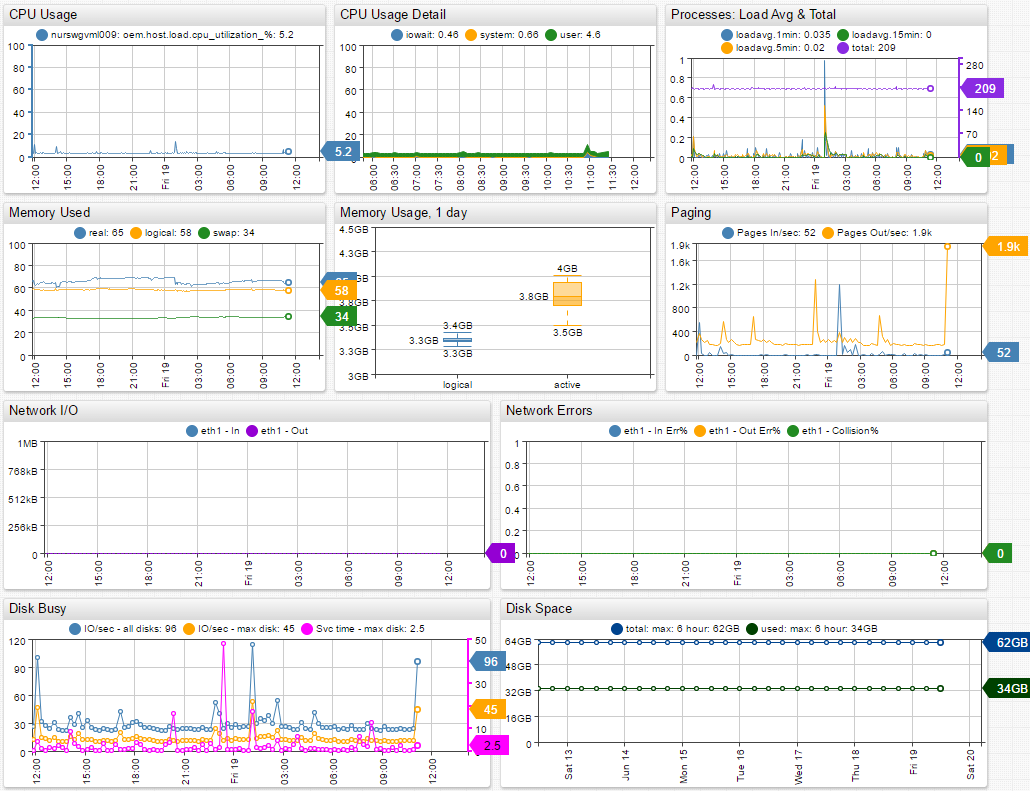

• Oracle Host Live Portal

# Data Queries

• Metrics Queries select most recent statistics

SELECT ENTITY_NAME, ENTITY_TYPE || '.' || REPLACE(REPLACE(METRIC_GROUP_LABEL, ',', ' '), ' ', '_') || '.' ||
REPLACE(REPLACE(TRIM(REPLACE(REPLACE(REPLACE(REPLACE(METRIC_COLUMN_LABEL, ' - ', '-'), ',', ' '), ')', ' '), '(', ' ')), ' ', '_'), '__', '_') AS METRIC,
NULLIF(KEY_PART_1, '%') AS KEY, NULLIF(KEY_PART_2, '%') AS KEY_2, NULLIF(KEY_PART_3, '%') AS KEY_3, NULLIF(KEY_PART_4, '%') AS KEY_4,
NULLIF(KEY_PART_5, '%') AS KEY_5, NULLIF(KEY_PART_6, '%') AS KEY_6, NULLIF(KEY_PART_7, '%') AS KEY_7, COLLECTION_TIME_UTC, VALUE
FROM SYSMAN.gc$metric_values
WHERE ENTITY_TYPE = 'oracle_database' AND METRIC_GROUP_LABEL_NLSID IS NOT NULL AND COLLECTION_TIME_UTC >= ? ORDER BY COLLECTION_TIME_UTC

SELECT ENTITY_NAME, ENTITY_TYPE || '.' || REPLACE(REPLACE(METRIC_GROUP_LABEL, ',', ' '), ' ', '_') || '.' ||
REPLACE(REPLACE(TRIM(REPLACE(REPLACE(REPLACE(REPLACE(METRIC_COLUMN_LABEL, ' - ', '-'), ',', ' '), ')', ' '), '(', ' ')), ' ', '_'), '__', '_') AS METRIC,
NULLIF(KEY_PART_1, '%') AS KEY, NULLIF(KEY_PART_2, '%') AS KEY_2, NULLIF(KEY_PART_3, '%') AS KEY_3, NULLIF(KEY_PART_4, '%') AS KEY_4,
NULLIF(KEY_PART_5, '%') AS KEY_5, NULLIF(KEY_PART_6, '%') AS KEY_6, NULLIF(KEY_PART_7, '%') AS KEY_7, COLLECTION_TIME_UTC, VALUE
FROM SYSMAN.gc$metric_values
WHERE ENTITY_TYPE = 'host' AND COLLECTION_TIME_UTC >= ? ORDER BY COLLECTION_TIME_UTC

• Properties Query selects current properties

SELECT 'oem.' || TARGET_TYPE AS TTYPE, TARGET_NAME, HOST_NAME, DISPLAY_NAME, TIMEZONE_REGION, TYPE_QUALIFIER1 AS TYPE
FROM SYSMAN.GC$TARGET
WHERE TARGET_TYPE IN ('host', 'oracle_database')
