Axibase Collector

NGINX PLUS Web Server Monitoring

Overview

This document describes how to collect various metrics from an NGINX PLUS web server for long-term retention and monitoring in the Axibase Time Series Database.

The periodic data collection can be organized in several ways:

The document will provide instructions for the first way of configuring.

Requirements

Configure a job in Axibase Collector

Axibase Collector will poll the NGINX PLUS status page every 5 seconds, build network commands, and send them to ATSD.

Log in to Axibase Collector web interface.

Create Item List for NGINX PLUS servers

  • Open the Collections:Item Lists page.
  • Add a new TEXT Item List named nginx-plus-servers containing DNS names or IP addresses of the monitored NGINX PLUS servers, one server per line. Make sure that each server on the list is accessible on the specified protocol and port and exposes the status page on the same path /status. If the protocols and ports are different, move the entire url to the list and set Path field equal to the${ITEM} placeholder.
  • Save the list.

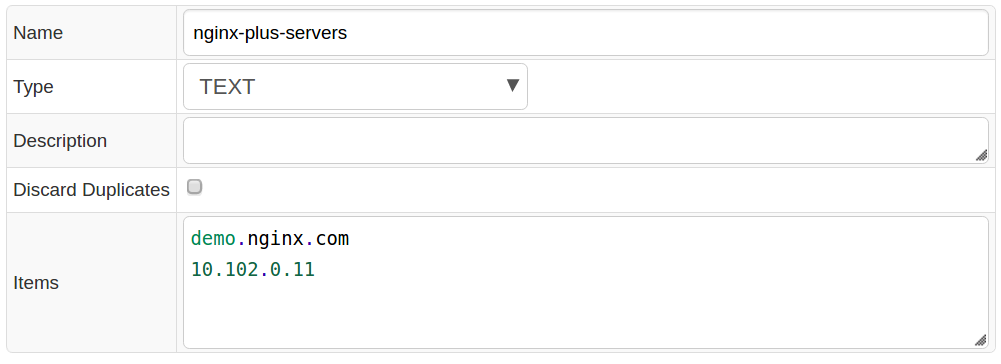

Server list example

Import a job

  • Import the nginx-plus-collector-job.xml job on the Jobs:Import page.
  • Open the nginx-plus-statistics JSON job.
  • If the 'Storage' drop-down is set to None, select the target ATSD server.
  • Set Status to Enabled.
  • Save the job.

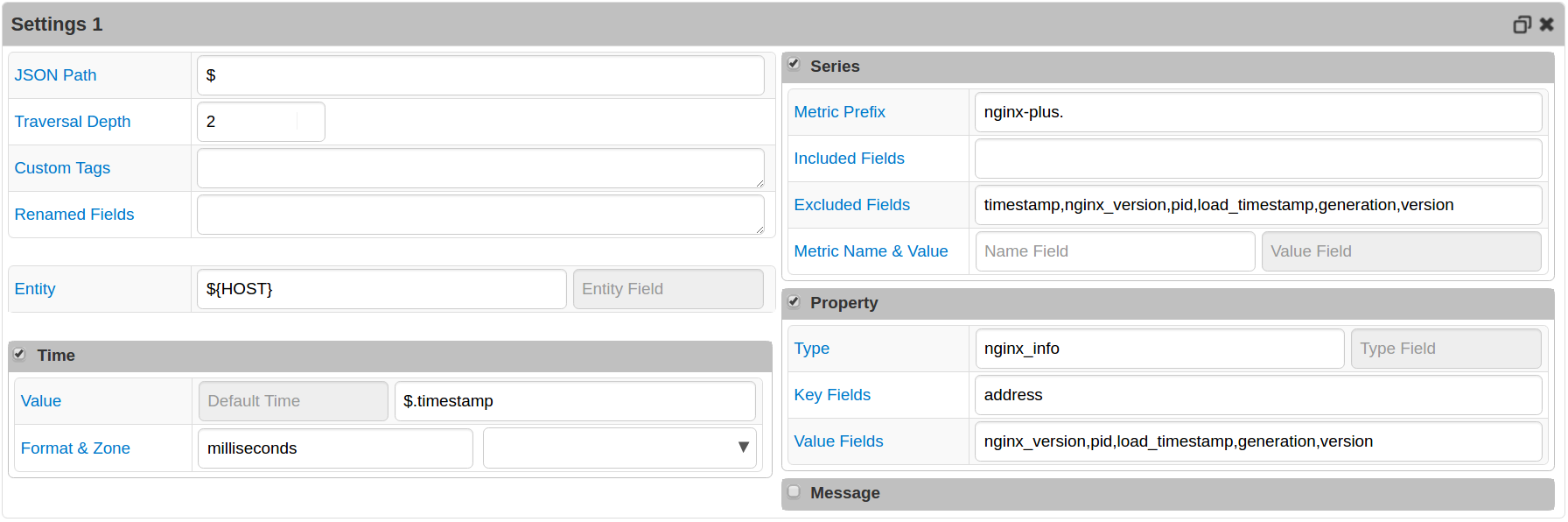

The job consists of several settings blocks, each of which is responsible for processing specific data from the NGINX PLUS status page. Each block forms special series and property commands for ATSD depending on what is being processed by the block. For example, the first settings block is responsible for processing general information about an NGINX PLUS Server. This block will fetch different metrics about connection, ssl handshakes, requests, respawned processses of the server and get its general properties such as address, nginx_version, load_timestamp, etc. First settings block The result series and propertycommands formed by the block will look as shown below:

series e:demo.nginx.com d:2016-08-02T10:35:46.608Z m:nginx-plus.connections.accepted=40750818 m:nginx-plus.connections.dropped=0 m:nginx-plus.requests.current=11 m:nginx-plus.ssl.handshakes=45602 m:nginx-plus.connections.idle=34 m:nginx-plus.requests.total=85010375 m:nginx-plus.processes.respawned=0 m:nginx-plus.ssl.session_reuses=7504 m:nginx-plus.connections.active=11 m:nginx-plus.ssl.handshakes_failed=6641
property t:nginx_info e:demo.nginx.com d:2016-08-02T10:35:46.608Z k:address=206.251.255.64 v:nginx_version=1.9.13 v:pid=12121 v:load_timestamp=1469872800422 v:generation=17 v:version=6

Other settings blocks in the provided collector job configuration file can be briefly described by the following statements:

  • Second settings block collects information about all peers of upstreams and stream.upstreams.
  • Third settings block collects all information about server zones and upstreams, along with general properties of all caches of the server.
  • Fourth settings block is responsible for getting all information about stream.server_zones.
  • Fifth settings block collects more detailed data about all the caches of the server.

Validate Data Availability

  • Open the nginx-plus-status configuration in the nginx-plus-statistics job.
  • Click Test to verify processing.

NGINX test

  • Log in to the ATSD web interface.
  • Open the Metrics tab and apply the nginx-plus* name mask to view NGINX metrics received by ATSD.
  • Click on Series link and check that metrics are present for each server in the nginx-plus-servers list.

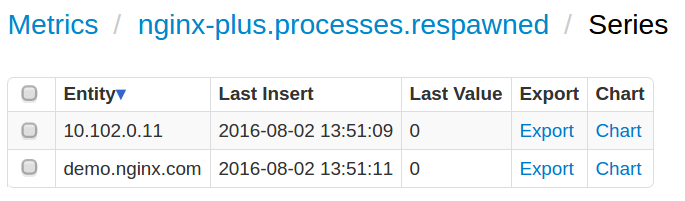

NGINX metrics

Viewing Data in ATSD

Metrics

List of collected NGINX PLUS server metrics.

Entity Group

  • Open Admin:Entity Groups, click the [Import] button, and upload nginx_plus_entity_group.xml.
  • Select the imported nginx-plus-servers group.
  • Verify that the group contains your NGINX servers.

Portal

  • Open Configuration: Portals, click the [Import] button, and upload nginx-plus-portal.xml.
  • Click the Assign link and associate the portal with the entity group you created earlier.

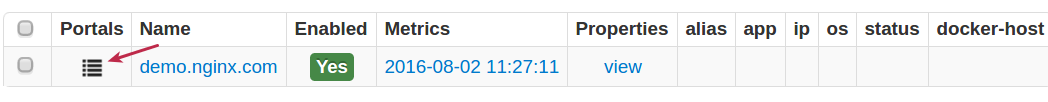

  • Open Entity tabs, find the NGINX PLUS servers you would like to see information about, and click on its portal icon.

NGINX PLUS Status portal example

Notifications

You can monitor key NGINX PLUS statistics by creating a rule in ATSD rule engine to send an email notification in case of abnormal conditions.

For example, you can send an email if the average active connections* count over the last 15 minutes on a target NGINX PLUS server drops below the specified threshold.

Setting up Mail Client

Import rules

  • Download an xml file containing the rules.
  • Open the Configuration: Rules page.
  • Click Import and attach the nginx-plus-rules.xml file.
  • Open 'created rules' in the Rule Editor and change recipient address on the Email Notifications tab.
  • These rules will automatically apply to all NGINX PLUS servers monitored by Axibase Collector.

The following rules are provided in the nginx_plus_rules.xml file:

RuleDescription
nginx_plus_respawned_proc_increaseRaise an alert when an NGINX PLUS server's total number of abnormally terminated and respawned child processes increases.
nginx_plus_fails_highRaise an alert when an NGINX PLUS server's total number of unsuccessful attempts to communicate with some peer server is high.
nginx_plus_droppped_highRaise an alert when an NGINX PLUS server dropped sufficient amount of connections.
nginx_plus_downtime_longRaise an alert indicating NGINX PLUS server's peer is in "unavail" and "unhealthy" states during a specified period of time (default: 15 minutes).
nginx_plus_active_connection_lowRaise an alert when an NGINX PLUS server average active connection count is below the specified threshold (default: 10) over the last 15 minutes.
nginx_plus_active_connection_heartbeatRaise an alert when status page statistics are no longer being received by ATSD. Check that the server is reachable and Axibase Collector job is running.

To create your own rules, refer to Rule Engine documentation.
