# SolarWinds

# Overview

SolarWinds provides multi-vendor network, server, and application monitoring software for small and medium-size environments.

SolarWinds Monitor products collect and store statistics from target devices in a Microsoft SQL Server database (SolarWindsOrion), which Axibase Collector queries every 5 minutes to offload incremental data into the Axibase Time Series Database for long-term retention and operations analytics.

# Requirements

• SolarWinds Server & Application Monitor 6+

# Installation Steps

# Import SolarWinds JDBC job

• Open the Jobs:Import page and upload the collector-jobs-solarwinds-base-jobs.xml file.

# Configure SolarWinds Database Connection

• Open the Data Sources:Databases page and select the solarwinds database.

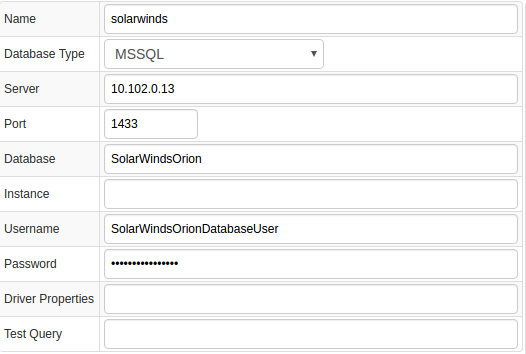

• Provide connection parameters to the target SolarWindsOrion database as displayed below:

• Execute the following test query to check the connection:

SELECT 1

• Query result must be Query OK.

# Verify Job Configuration

• Open the SolarWinds job.
• Set Data Source to solarwinds.

• Choose one of target ATSD instances if your Collector instance is connected to multiple ATSD servers.
• Save the Job.

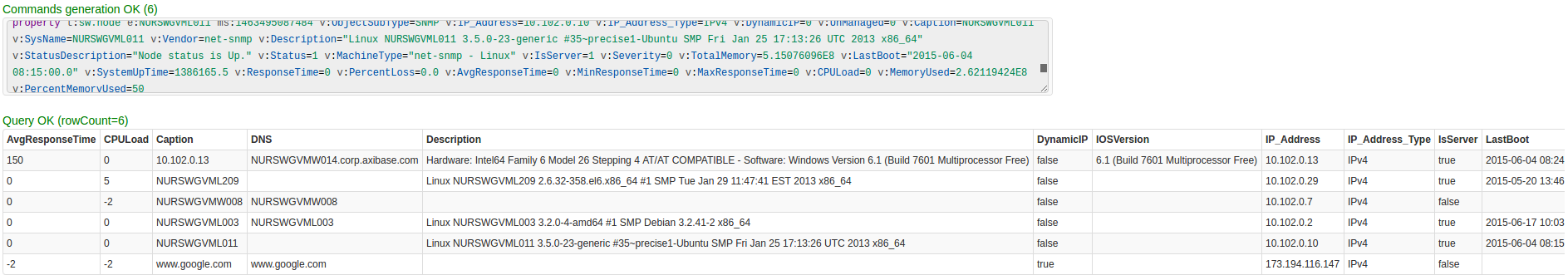

• Open each configuration, click on the [Test] button, and review the output. See Data Queries below.

# Schedule the Job

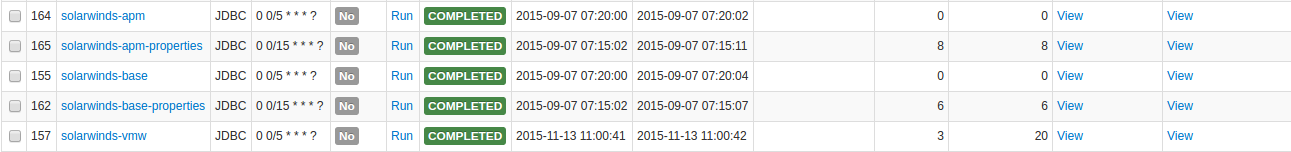

• Open the JDBC Job page and click the [Run] button for the SolarWinds job.
• Make sure that the job status is COMPLETED and Items Read and Sent commands are greater than 0.

• If there are no errors, set job status to 'Enabled' and save the job.

# Verify Metrics in ATSD

• Login into ATSD.
• Click on Metrics tab and filter metrics by prefix sw.*.

# Viewing Data in ATSD

# Metrics

• List of collected SolarWinds metrics

# Properties

• List of collected SolarWinds properties

# Entity Groups

• solarwinds-base
• solarwind-vmware-vm
• solarwind-vmware-host
• solarwind-vmware-cluster

# Portals

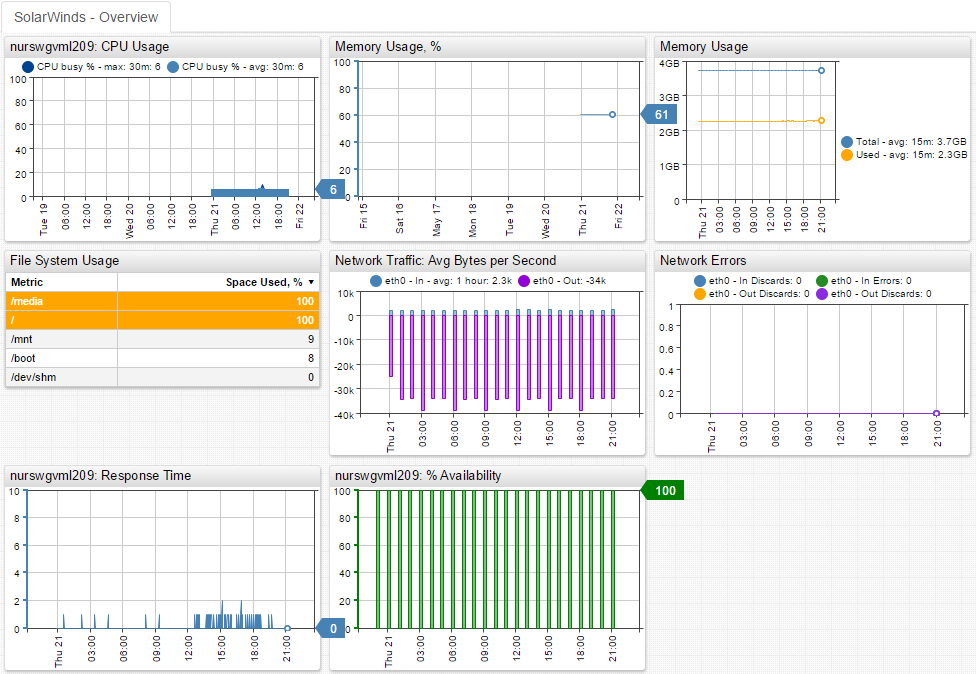

• SolarWinds Base Portal

• SolarWinds - VMware VM
• SolarWinds - VMware Host
• SolarWinds - VMware Cluster

# Data Queries

Data queries that offload recent metrics and properties.
