Java Virtual Machine

Overview

This document describes how to collect JMX metrics exposed by Java applications for long-term retention and monitoring in Axibase Time Series Database.

This integration enables both performance monitoring (garbage collection, load, threads, heap/offheap memory), availability monitoring (system uptime counter), as well as configuration tracking by notifying any changes in the system properties.

Requirements

JRE/JDK 6+

Installation Steps

Enable JMX in Java Application

Configure your Java application for JMX data collection as described here.

Import JVM Job into Axibase Collector

Open Jobs:Import and upload the jmx-jvm-job.xml file.

Configure JMV JMX Connection

Open the Jobs:JMX page and select the jmx-jvm job.
For each JMX Configuration:

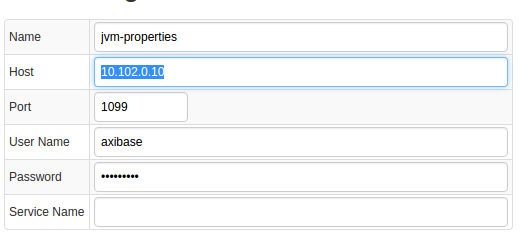

Provide connection parameters to the target JVM:

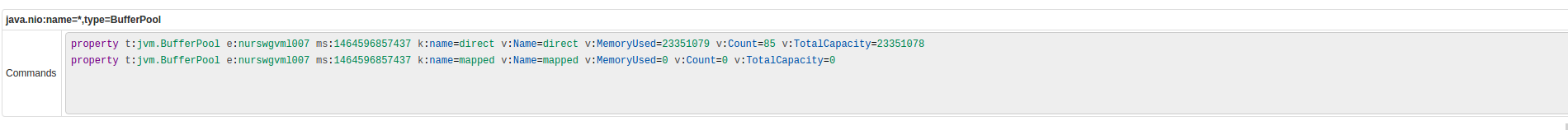

Click the [Test] button:

Schedule the Job

Open the JMX Job page and click the [Run] button for the JVM JMX job.
Make sure that the job status is COMPLETED and Items Read and Sent commands are greater than 0.

If there are no errors, set the job status to 'Enabled' and save the job.

Verify Metrics in ATSD

Log in to ATSD.

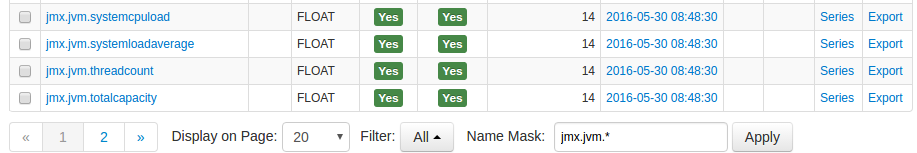

Click on Metrics tab and filter metrics by name jmx.jvm*.

Viewing Data in ATSD

Metrics

List of collected JVM metrics.

Properties

List of collected JVM properties.

Entity group

Open Admin:Entity Groups, click the [Import] button, and upload jvm_entity_group.xml.
Select the imported java-virtual-machine group.
Verify that the group contains your JVM hosts.

Entity Views

Open Configuration:Entity Views, click the [Import] button, and upload jvm_entity_view.xml.
Select the imported Java Applications view.
Select the Entity Group that you created earlier.

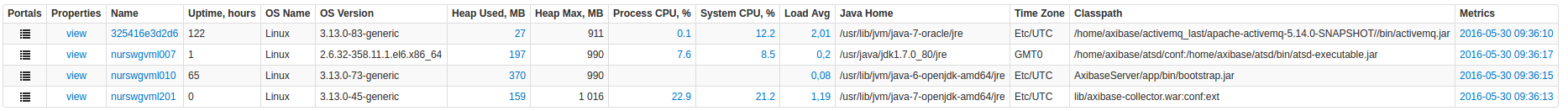

Click on the [View] button and browse information about your entities:

Portal

Open Configuration: Portals, click the [Import] button, and upload jvm_portal.xml.
Click the Assign link and associate the portal with the entity group you created earlier.

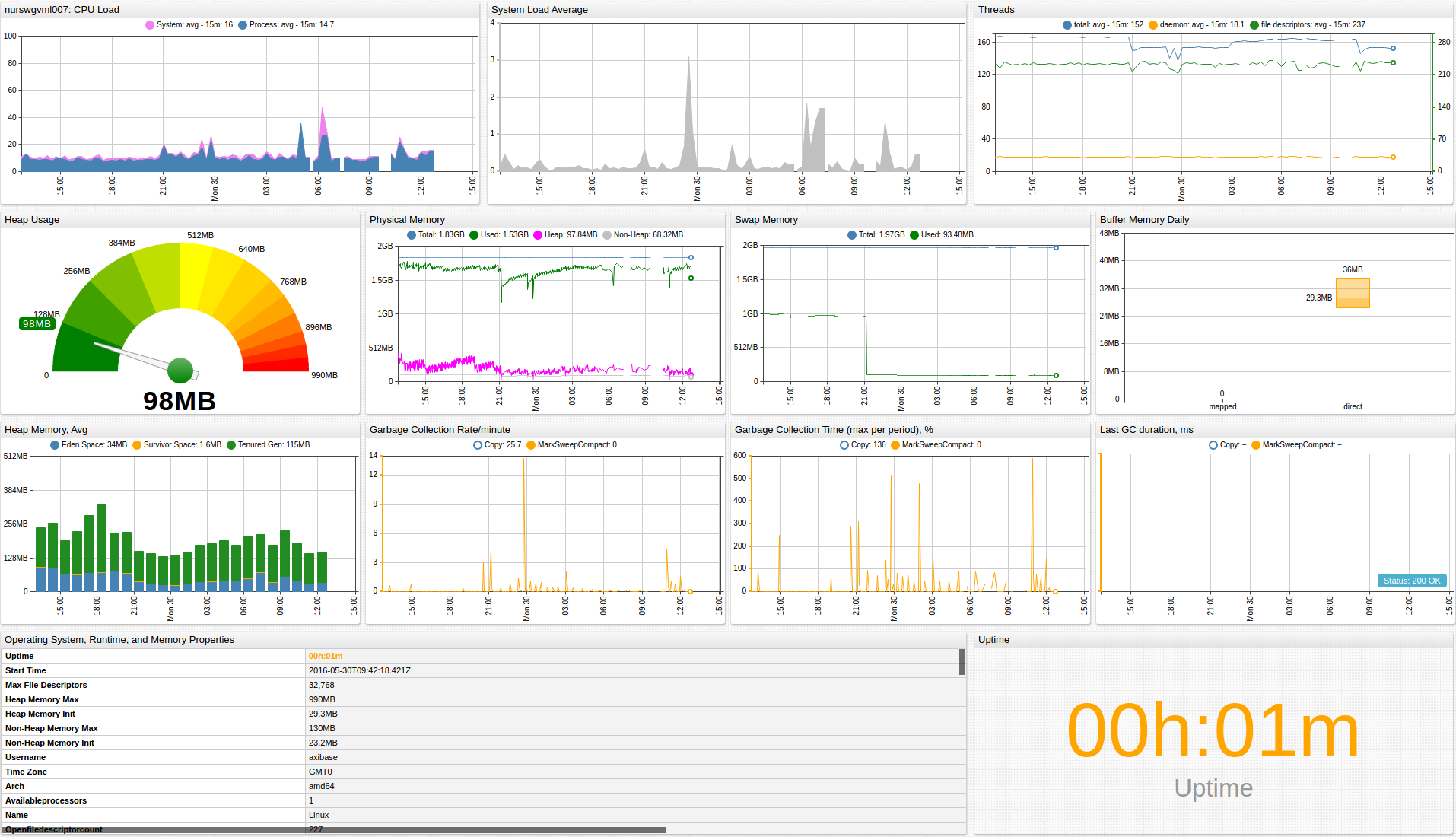

Open the Entity tab, find the java application by name, and click on its portal icon:

JVM Live Portal

Rules

Setting up Mail Client

Configure Mail Client.

Import Rules

Open the Configuration: Rules page, click the [Import] button, and upload jvm_rules.xml.
For each created rule: open it in the Rule Editor and change recipient address on the Email Notifications tab.
These rules will automatically apply to all JVM based applications monitored by Axibase Collector.

Imported rules:

Rule	Description
jvm_application_restart	Raise an alert when an application has been restarted less than 5 minutes ago.
jvm_cpu_load	Raise an alert when an application cpu load exceeds the set threshold.
jvm_garbage_collection_rate	Raise an alert when an application Garbage Collector rate exceeds the set threshold.
jvm_garbage_collection_time	Raise an alert when an application Garbage Collector time exceeds the set threshold.
jvm_heap_memory_usage	Raise an alert when an application heap memory usage exceeds the set threshold.
jvm_runtime_property_changed	Raise an alert when an application property is changed.
jvm_system_load	Raise an alert when an application system load exceeds the set threshold.

To create your own rules, refer to Rule Engine documentation.
