# HP OpenView

# Overview

HP OpenView Performance Manager provides an agent-based centralized data collection solution.

OVPM stores collected statistics in files on the local file system for a period of several months.

Axibase Collector queries the OVPM server for particular GLOBAL classes every 15 minutes to offload incremental data into the Axibase Time Series Database for long-term retention and operations analytics.

# Requirements

• HP OpenView Performance Manager 9.+

# Installation steps

# Import HP OpenView JDBC job

• Open the Jobs:Import page and upload the collector-jobs-ovpm-jobs.xml file.

# Configure HP Open View HTTP Pool

• Open the Data Sources:HTTP Pools page, select the ovpm-10.102.0.6 database.

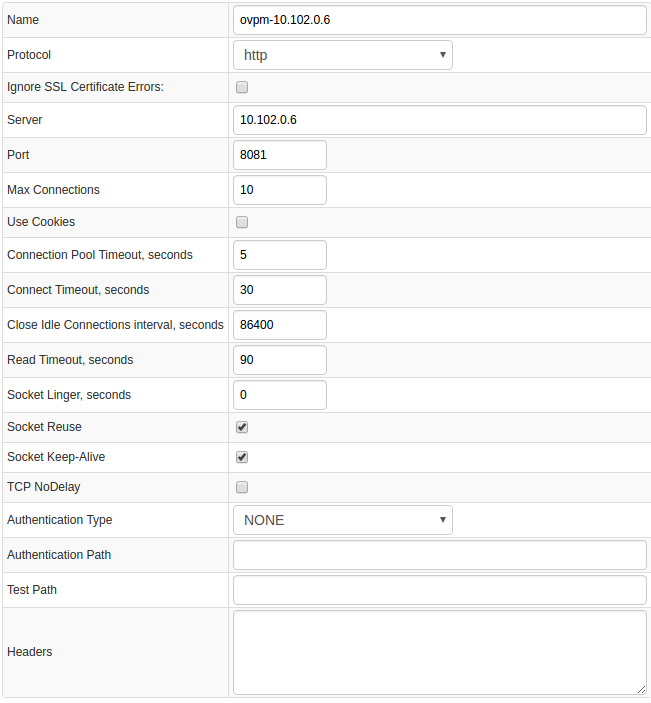

• Provide connection parameters to the target ovpm-10.102.0.6 pool as displayed below:

# Verify Job Configuration

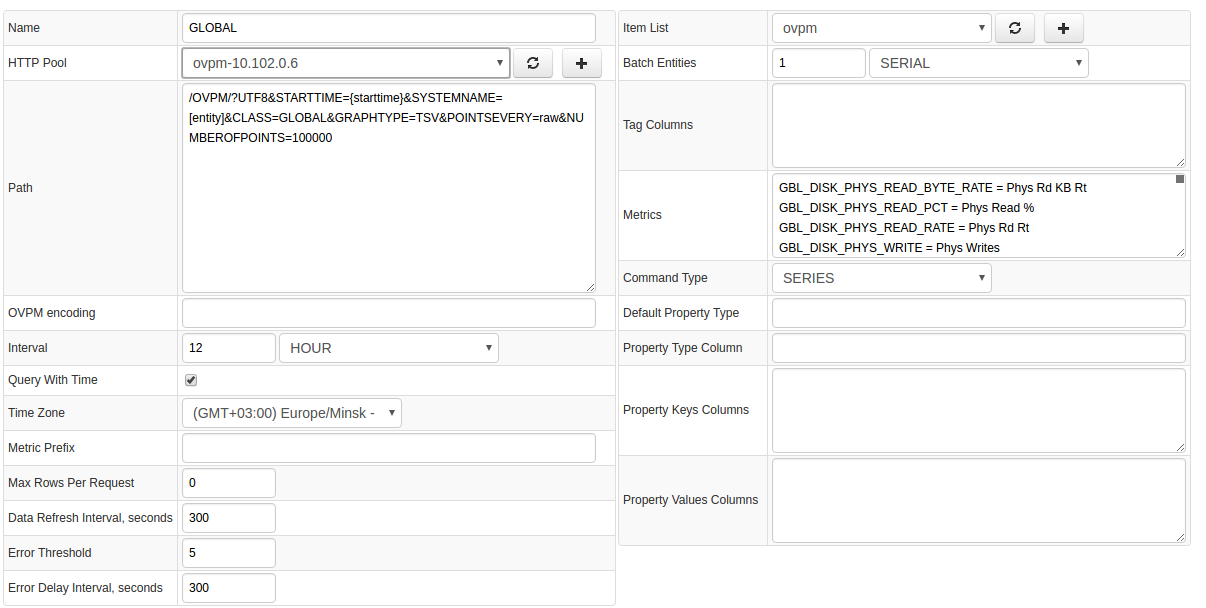

• Open the ovpm-global job.
• Set the HTTP Pool to ovpm-10.102.0.6.

• Choose an ATSD server if your Collector instance is connected to multiple ATSD servers.
• Save the Job.
• Open each configuration.
• Open the ovpm Item List and populate it with servers whose statistics you would like to collect.
• Click the Test button and review the output.

# Schedule the Job

• Open the OVPM Job page and click the Run button for the ovpm-global job.
• Make sure that the job status is COMPLETED and the Items Read and Sent commands fields show a value greater than 0.

• If there are no errors, set job status to 'Enabled' and save the job.

# Verify Metrics in ATSD

• Log in to ATSD.

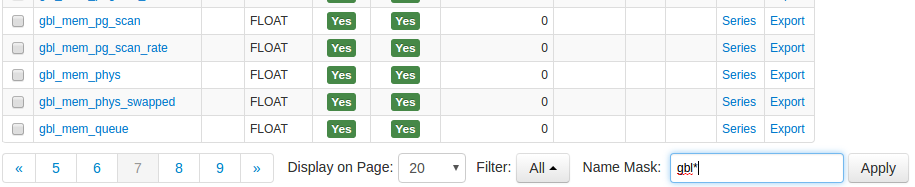

• Click on Metrics tab and filter metrics by the prefix gbl_.*

# Viewing Data in ATSD

# Metrics

• List of collected HP OpenView metrics

# Entity Group List

• OVPM Linux
• OVPM Unix
• OVPM Windows

# Portal List

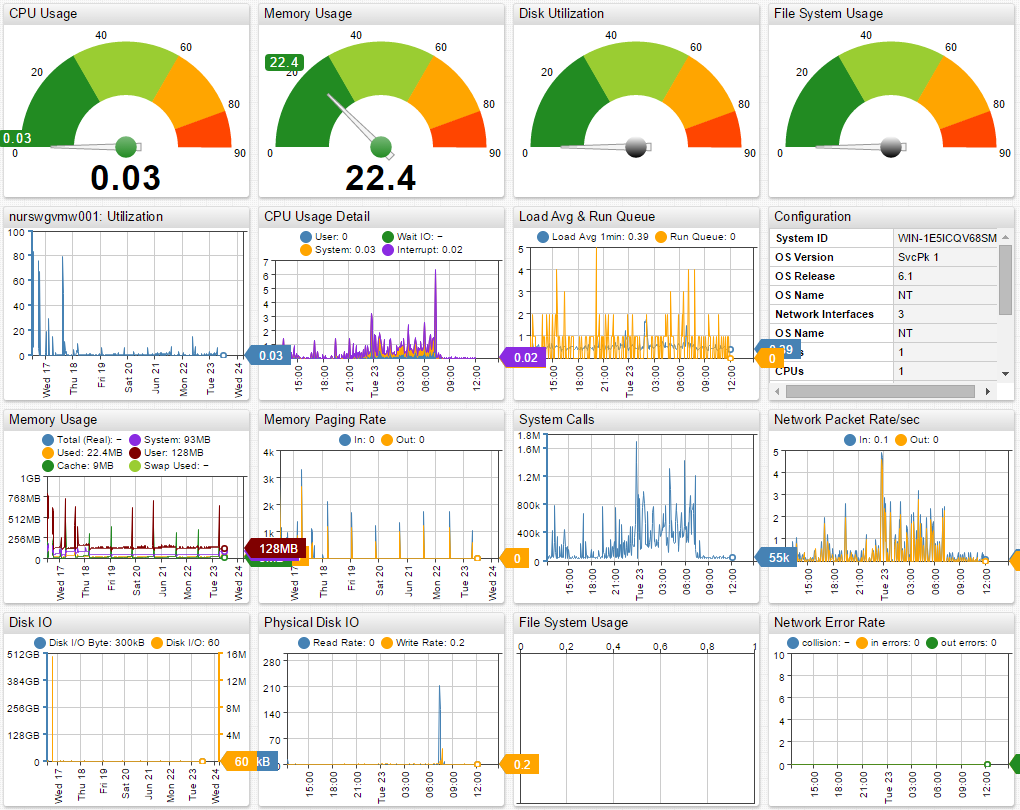

OVPM Portal
