AWS IAM Account for CloudWatch

Overview

The following document describes the process of creating a read-only account used to query statistics from AWS CloudWatch API.

Account Configuration

Create User Group

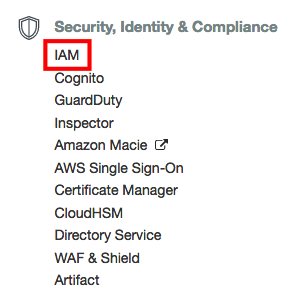

Login into the AWS Console and locate IAM (Identity and Access Management) service under the Security, Identity and Compliance section.

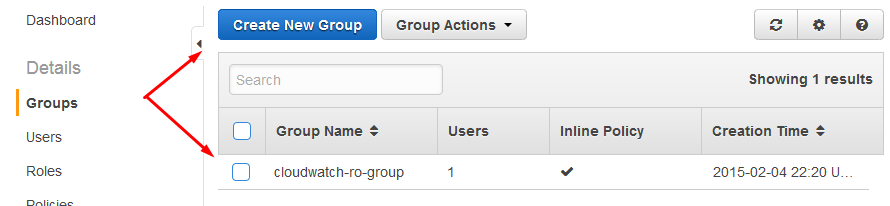

Open the Groups menu and click Create New Group.

Specify group name, for example cloudwatch-ro-group.

Create User

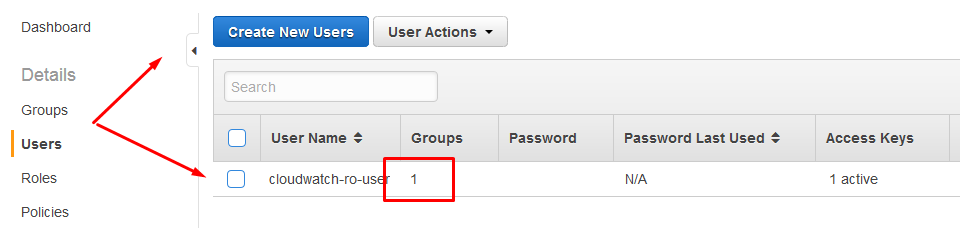

Open Users page and click Create New User.

Enter a user name such as cloudwatch-ro-user.

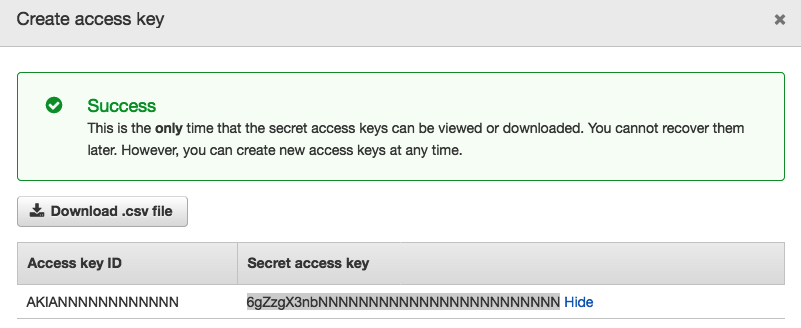

Generate access and secret keys for the user. Copy the keys for your reference.

The keys will be required for the AWS job in Axibase Collector.

Add User To Group

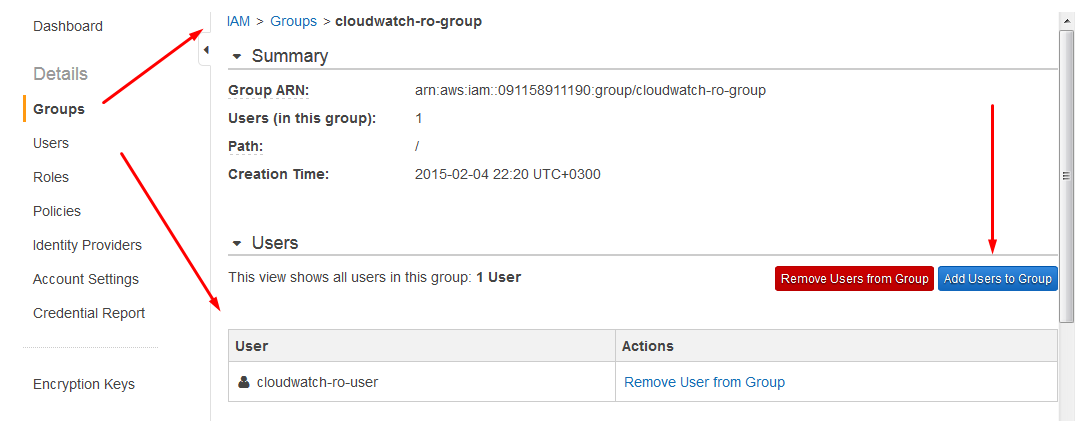

Open Group page and click on Add Users to Group.

Add cloudwatch-ro-user to the cloudwatch-ro-group.

Grant Permissions

Open the Group page and click Create Group Policy

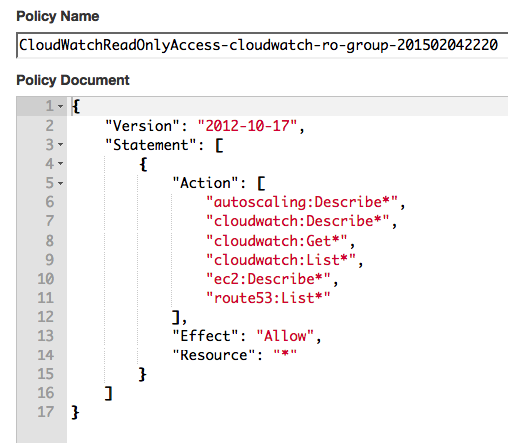

Enter the following policy text in JSON format, click Validate Policy and save it.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "cloudwatch:List*",
                "cloudwatch:Get*",
                "cloudwatch:Describe*",
                "ec2:Describe*",
                "autoscaling:Describe*",
                "route53:List*"
            ],
            "Effect": "Allow",
            "Resource": "*"
        }
    ]
}

The above policy grants users in the cloudwatch-ro-group permissions to execute various Get, List, and Describe API methods. This type of policy provides a read-only access.

The cloudwatch: actions are required to list available CloudWatch metrics and download statistics, whereas actions for the other namespaces are required to download AWS resource attributes and relationships and store them as metadata in ATSD.

To simplify configuration, use wildcards to grant multiple actions using prefix matching. For example, specify route53:List* action instead of route53:ListHealthChecks and route53:ListTagsForResources.

Sample namespace-specific actions:

You can now query Amazon CloudWatch APIs with the new user account, access key, and secret key.
